A12616 Series

Catalog

THERM PAD 228.6X228.6MM BLU-VIO

Part	Shelf Life Start	Shelf Life	Thickness	Thickness	Outline [y]	Outline [x]	Shape	Color	Thermal Conductivity	Adhesive	Type
Laird Technologies - Thermal Materials A12616-01	Date of Certification	24 Months	0.02 in	0.508 mm	228.6 mm	228.6 mm	Square	Blue-Violet	3 W/m-K	Tacky - Both Sides	Gap Filler Pad Sheet
Laird Technologies - Thermal Materials A12616-19	Date of Certification	24 Months	0.02 in	0.508 mm	228.6 mm	228.6 mm	Square	Blue-Violet	3 W/m-K	Tacky - Both Sides Tacky - One Side	Gap Filler Pad Sheet

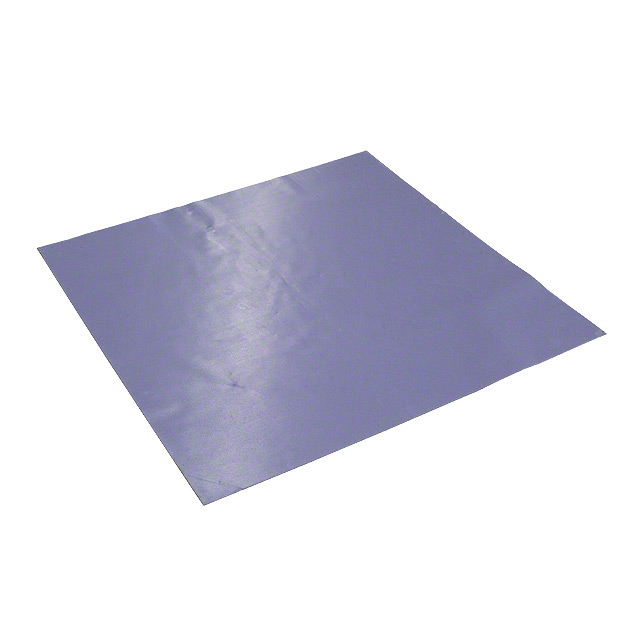

Laird Technologies - Thermal Materials A12616-08	Date of Certification	24 Months	0.02 in	0.508 mm	457.2 mm	457.2 mm	Square	Blue-Violet	3 W/m-K	Tacky - Both Sides	Gap Filler Pad Sheet
