MTS62C19A Series

3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver

Catalog

3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver

Part	Supplier Device Package	Output Configuration	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Step Resolution	Package / Case [custom]	Package / Case	Package / Case [custom]	Function	Technology	Motor Type - AC, DC	Voltage - Supply [Min]	Voltage - Supply [Max]	Grade	Mounting Type	Motor Type - Stepper	Interface

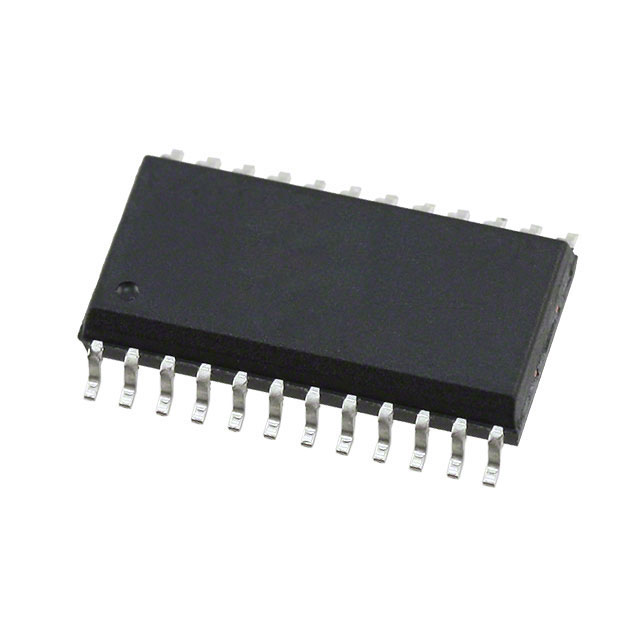

Microchip Technology MTS62C19A-LS105	24-SOP	Half Bridge (4)	550 mA	150 °C	-40 °C	10 V	40 V	1 1/2 1/4 1/8	7.5 mm	24-SOIC	0.295 in	Driver - Fully Integrated Control and Power Stage	CMOS	Brushed DC	4.5 V	5.5 V	Automotive	Surface Mount	Bipolar	On/Off

Catalog

3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver

Key Features

• * Pin-to-pin compatible with L6219 circuit

• * Able to drive both windings of a bipolar stepper motor

• * Load voltage supply range: 10V to 40V

• * Output current up to 750mA (each bridge)

• * Internal fixed Toff time PWM current control

• * Built-in protection diodes

• * Internal thermal shutdown

• * Under-voltage lockout

• * LS-TTL compatible logic inputs with pull-up resistors

• * Low Ron output resistance

• * Low quiescent current

Description

The MTS62C19A motor driver is an integrated circuit able to drive both windings of a bipolar stepper motor or bi-directionally control two DC motors. The two output bridges can sustain 40 V and deliver up to 750 mA of continuous current each. The maximum output current, controlled by a PWM circuit, is determined by the user’s selection of a reference voltage, a sensing resistor and two logic inputs. The outputs have been optimized for a low output saturation voltage drop.
