06025DA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

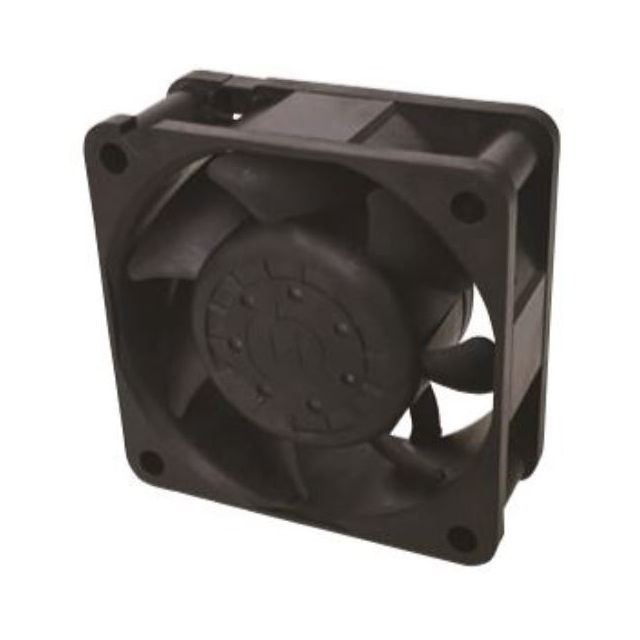

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, BALL BEARING, 45.6 CFM
| Part | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Material - Blade | Lifetime @ Temp. | Noise | Air Flow | Air Flow | Size / Dimension [z] | Size / Dimension [x] | Features | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Termination | Bearing Type | Approval Agency | Fan Type | Width [y] | Static Pressure | Static Pressure | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 7 V | 13.2 VDC | 0.67 A | Plastic | Plastic | 40000 Hrs | 52 dB | 1.28 m³/min | 45.6 CFM | 60 mm | 60 mm | Auto Restart PWM Control Speed Sensor (Tach) | 12 VDC | 70 °C | -10 °C | 8.04 W | 4 Wire Leads | Ball | CE cULus VDE | Tubeaxial | 25 mm | 1.17 in H2O | 291.4 Pa | 11000 RPM |
