DF12NC(3.0) Series

Catalog

CONN HDR 10POS SMD GOLD

Part	Mounting Type	Contact Finish	Number of Rows [custom]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Height Above Board	Height Above Board [z]	Number of Positions	Connector Type	Height Above Board [z]

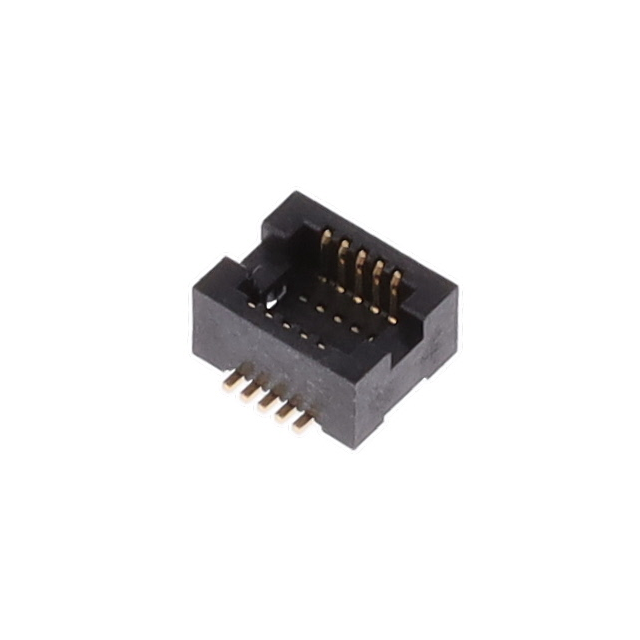

Hirose Electric Co Ltd DF12NC(3.0)-10DP-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm	2.3 mm	0.091 "	10	Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-80DS-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm		0.087 in	80	Receptacle Center Strip Contacts	2.2 mm

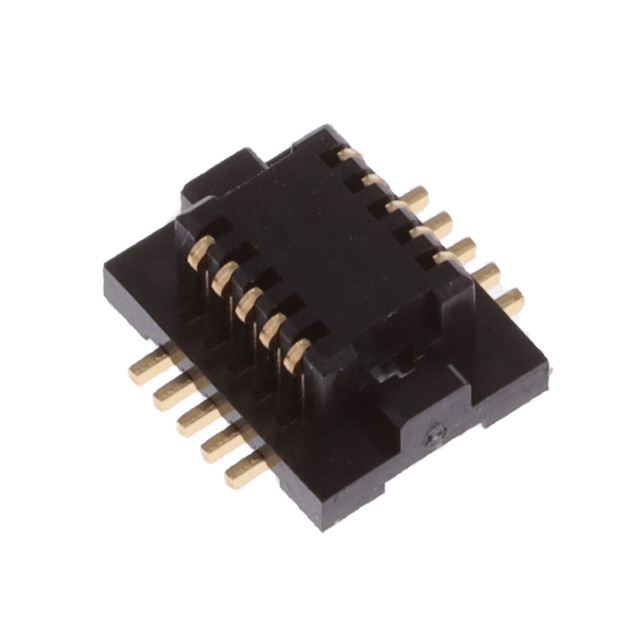

Hirose Electric Co Ltd DF12NC(3.0)-10DS-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm		0.087 in	10	Receptacle Center Strip Contacts	2.2 mm
Hirose Electric Co Ltd DF12NC(3.0)-36DS-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm		0.087 in	36	Receptacle Center Strip Contacts	2.2 mm
Hirose Electric Co Ltd DF12NC(3.0)-60DS-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm		0.087 in	60	Receptacle Center Strip Contacts	2.2 mm
Hirose Electric Co Ltd DF12NC(3.0)-32DP-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm	2.3 mm	0.091 "		Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-40DS-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm		0.087 in	40	Receptacle Center Strip Contacts	2.2 mm
Hirose Electric Co Ltd DF12NC(3.0)-50DP-0.5V(96)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm	2.3 mm	0.091 "	50	Header Outer Shroud Contacts

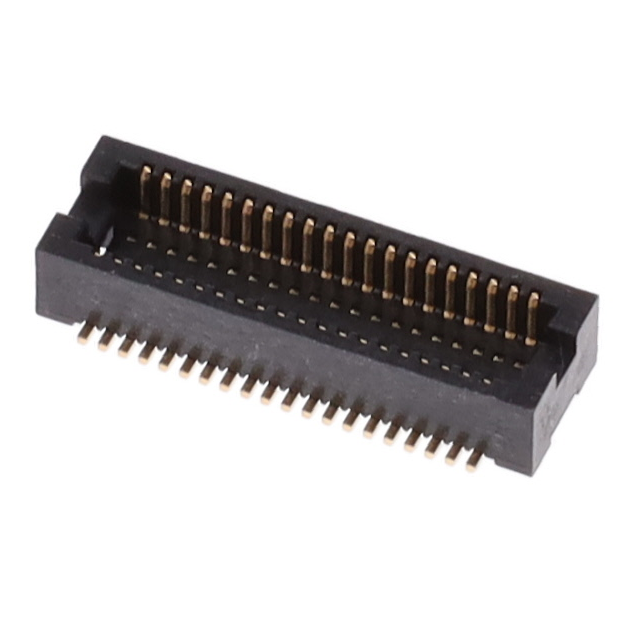

Hirose Electric Co Ltd DF12NC(3.0)-40DP-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm	2.3 mm	0.091 "	40	Header Outer Shroud Contacts

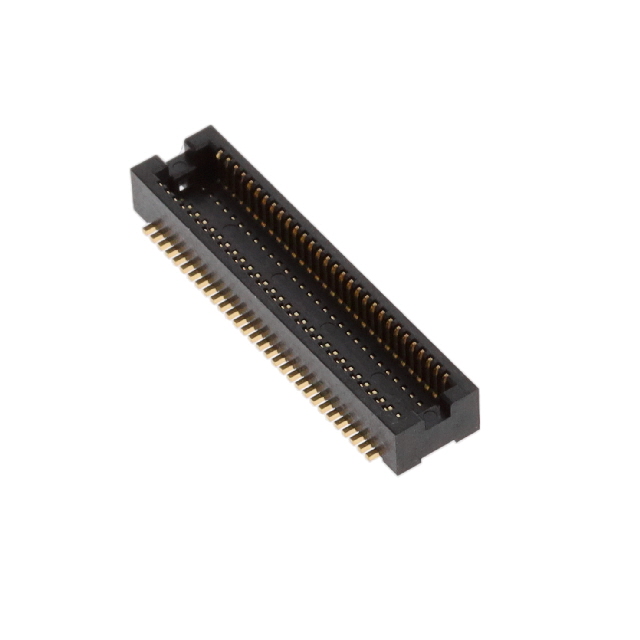

Hirose Electric Co Ltd DF12NC(3.0)-60DP-0.5V(51)	Surface Mount	Gold	2	3 mm	0.203 çm	8 µin	0.02 "	0.5 mm	2.3 mm	0.091 "	60	Header Outer Shroud Contacts
