FH26 Series

Catalog

0.3MM PITCH, HEIGHT 1.0MM BOTTOM CONTACT, FRONT FLIP

Part	Current Rating (Amps)	Locking Feature	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Connector/Contact Type	Termination	Cable End Type	Actuator Color	Number of Positions	Housing Material	Mounting Type	Actuator Material	Flat Flex Type	Voltage Rating	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Contact Finish	Housing Color	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness

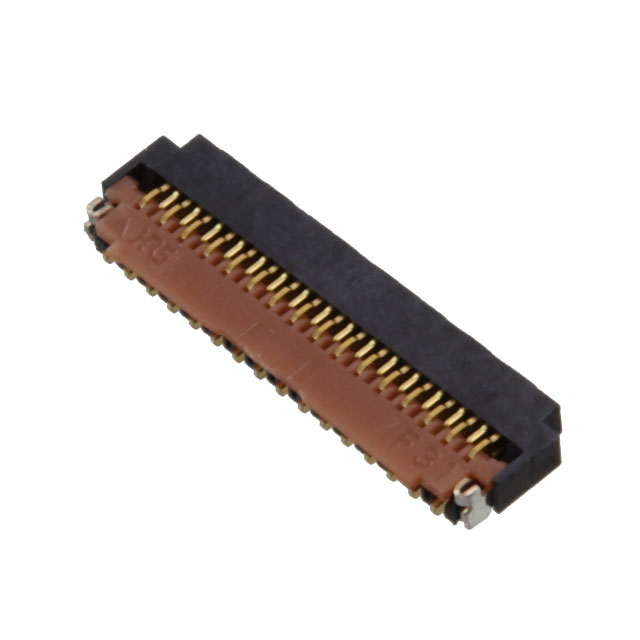

Hirose Electric USA, Inc. FH26W-31S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	31	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-41S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	41	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-13S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	13	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-51S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	51	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-21S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	21	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-45S-0.3SHW(15)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	45	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
Hirose Electric USA, Inc. FH26W-61S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	61	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-71S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	71	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH26W-15S-0.3SHW(97)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown	15	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB UL94 V-0	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10	1.25 Áin	0.03 Ám

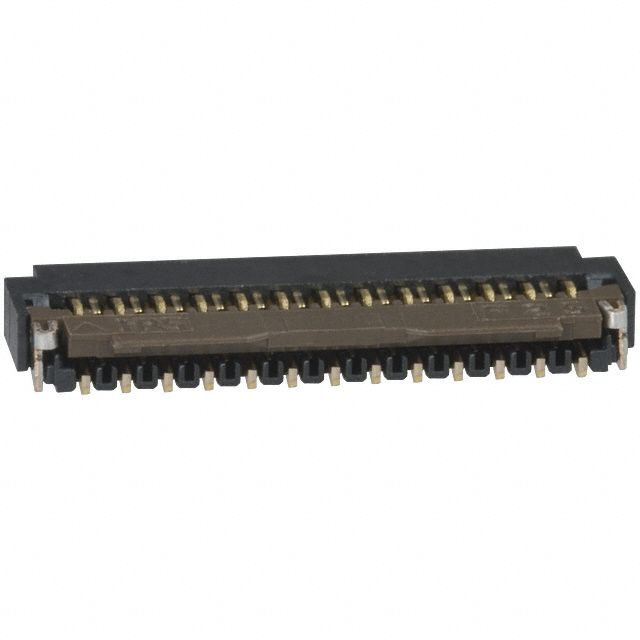

Hirose Electric USA, Inc. FH26W-25S-0.3SHW(60)	0.2 A	Flip Lock	0.2 mm	0.012 in	0.3 mm	Contacts Bottom	Solder	Tapered	Brown		Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Nylon Polyamide (PA)	FPC	30 VDC	Phosphor Bronze	UL94 HB	85 °C	-55 °C	1 mm	0.039 in	Gold	Black	10
