DF12NC(5.0) Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

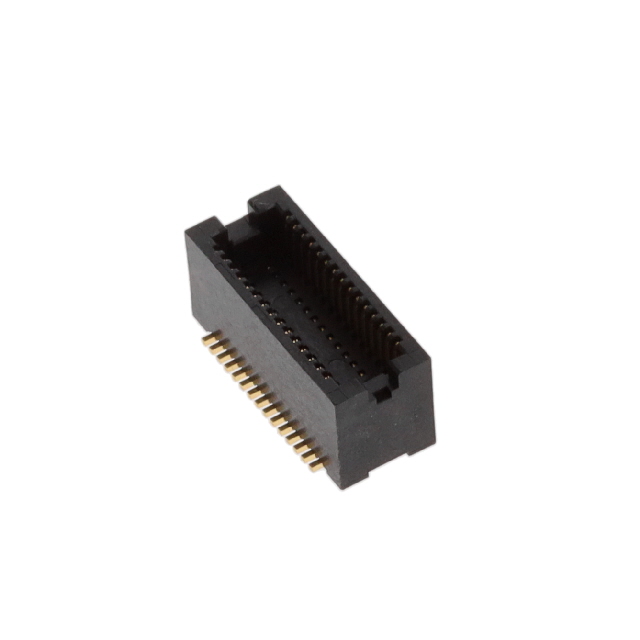

CONN HDR 30POS SMD GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Mounting Type | Number of Positions | Number of Rows [custom] | Contact Finish | Pitch | Pitch | Mated Stacking Heights | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 0.203 çm | 8 µin | Header Outer Shroud Contacts | Surface Mount | 30 | 2 | Gold | 0.02 " | 0.5 mm | 5 mm | 0.169 in | 4.3 mm |

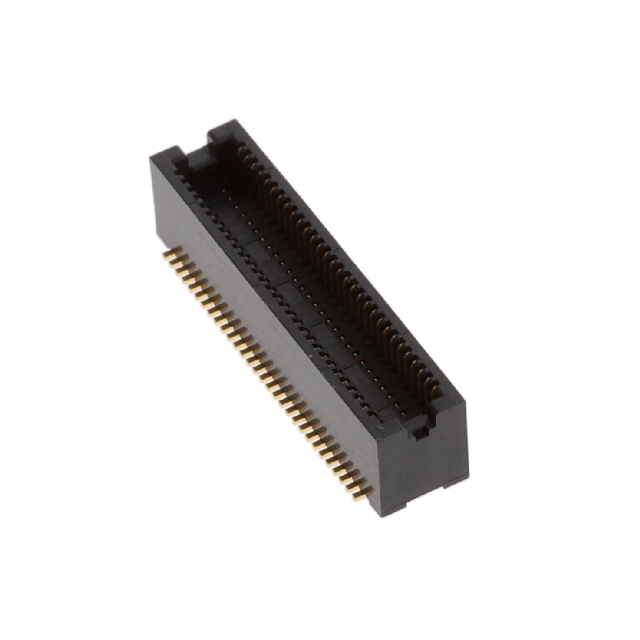

 Hirose Electric Co Ltd | 0.203 çm | 8 µin | Header Outer Shroud Contacts | Surface Mount | 60 | 2 | Gold | 0.02 " | 0.5 mm | 5 mm | 0.169 in | 4.3 mm |
 Hirose Electric Co Ltd | 0.203 çm | 8 µin | Header Outer Shroud Contacts | Surface Mount | 36 | 2 | Gold | 0.02 " | 0.5 mm | 5 mm | 0.169 in | 4.3 mm |
 Hirose Electric Co Ltd | 0.203 çm | 8 µin | Header Outer Shroud Contacts | Surface Mount | 20 | 2 | Gold | 0.02 " | 0.5 mm | 5 mm | 0.169 in | 4.3 mm |
 Hirose Electric Co Ltd | 0.203 çm | 8 µin | Header Outer Shroud Contacts | Surface Mount | 40 | 2 | Gold | 0.02 " | 0.5 mm | 5 mm | 0.169 in | 4.3 mm |
