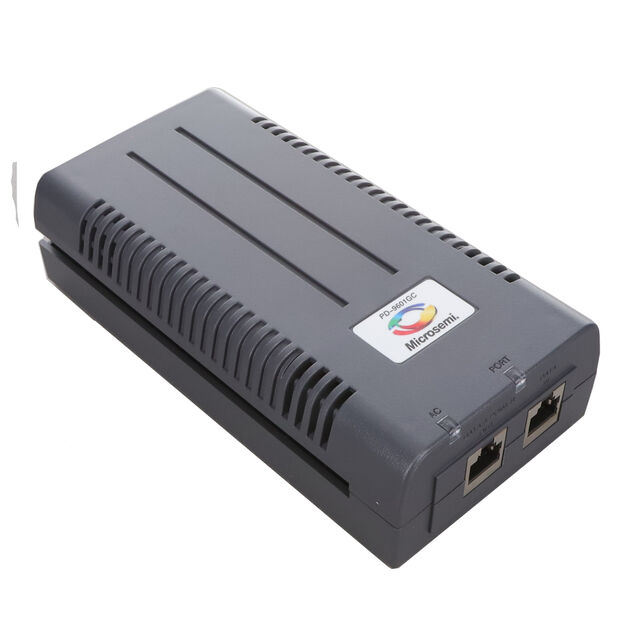

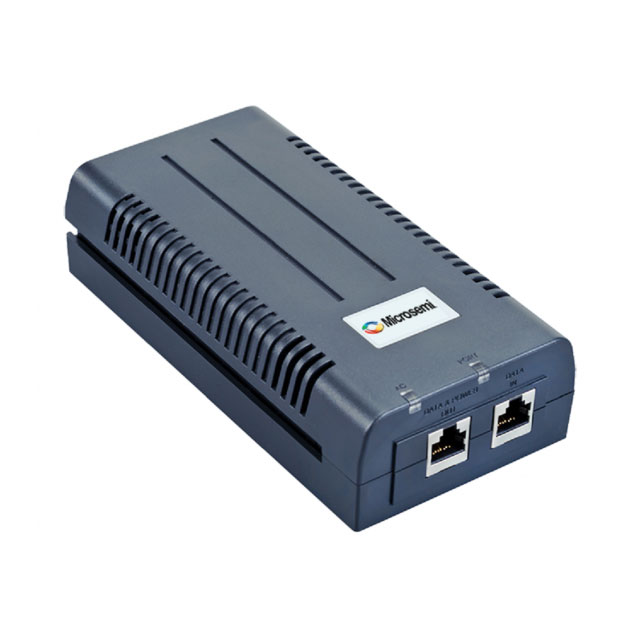

PD-9601GC Series

1 port, 90W, IEEE 802.3bt-compliant indoor port PoE midspan

Catalog

1 port, 90W, IEEE 802.3bt-compliant indoor port PoE midspan

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Configuration	Connector Type	Copper Type	Copper Ports	Number of Ports	PoE Ports	Output Connector	Voltage - Output	Compliance	Power (Watts) - Per Port	Type	Data Rate	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output	Mounting Type	Approval Agency	Input Connector	Voltage - Output [Max]	Voltage - Output [Min]
Microchip Technology PD-9601G/AC	-10 °C	45 °C	240 VAC	100 VAC	Fixed	RJ45	10 100 1000	1	1	1
Microchip Technology PD-9601G/AC-US	-10 °C	45 °C	240 VAC	100 VAC	Fixed	RJ45	10 100 1000	1	1	1
Microchip Technology PD-9601GC/AC-EU	-10 °C	40 °C	240 VAC	100 VAC					1		RJ45 (Data Power)	54 V	IEEE802.3bt	90 W	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	1.73 "	166.4 mm	88.6 mm	3.49 "	43.9 mm	6.55 in	1.67 A	Desktop	CE	RJ45 (Data Power)
Microchip Technology PD-9601GC/AC	-10 °C	40 °C	240 VAC	100 VAC					1		RJ45 (Data Power)	54 V	IEEE802.3bt	90 W	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	1.73 "	166.4 mm	88.6 mm	3.49 "	43.9 mm	6.55 in	1.67 A	Desktop	CE	RJ45 (Data Power)
Microchip Technology PD-9601GC/AC-UK	-10 °C	40 °C	240 VAC	100 VAC					1		RJ45 (Data Power)	54 V	IEEE802.3bt	90 W	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	1.73 "	166.4 mm	88.6 mm	3.49 "	43.9 mm	6.55 in	1.67 A	Desktop	CE	RJ45 (Data Power)
Microchip Technology PD-9601G/AC-EU	-10 °C	45 °C	240 VAC	100 VAC					1		RJ45 (Data Power)		IEEE802.3af IEEE802.3at	95 W	Midspan Injector	10 Mbps 100 Mbps 1000 Mbps	1.68 "	165.9 mm	87.9 mm	3.46 "	42.7 mm	6.53 "	1.67 A	Desktop	CE	RJ45 (Data Power)	57 V	54 V

Catalog

1 port, 90W, IEEE 802.3bt-compliant indoor port PoE midspan

Key Features

- Number of ports: 1

- PoE output: 90W

- Data rates: 10/100/1000 Mbps

- Power input: AC

- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)

- Regulatory compliance: IEEE 802.3bt Type 4, RoHS Compliant, WEEE Compliant, CE

- Complies with the latest EMI and safety standards

- Compact design

Description

The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. The midspan is IEEE 802.3bt type 4 and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points, powering 10/100/1000Base-T devices. With the midspan’s plug and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
