AD8349 Series
Manufacturer: Analog Devices
Beta
⌘K

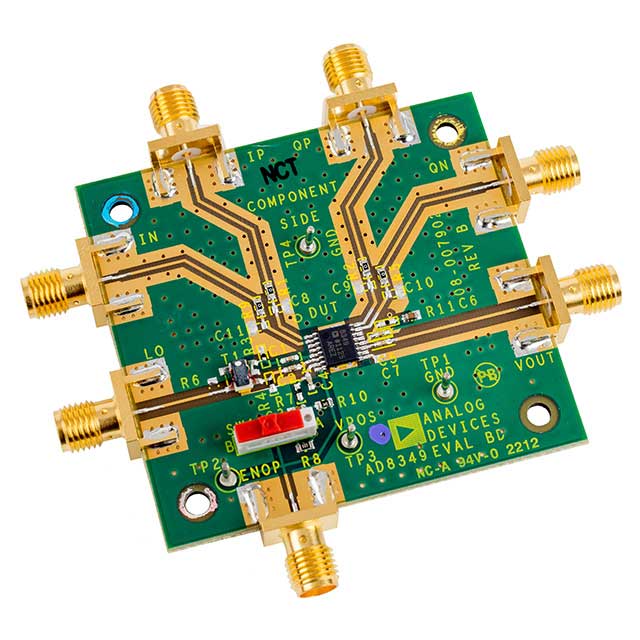

IC QUADRATUR MOD 700MHZ EVAL BRD
| Part | Frequency [Max] | Frequency [Min] | Supplied Contents | For Use With/Related Products | Type | LO Frequency [Min] | LO Frequency [Max] | Test Frequency | Function | Package / Case [custom] | Package / Case | Package / Case [custom] | Current - Supply | Output Power | Voltage - Supply [Min] | Voltage - Supply [Max] | P1dB | Noise Floor | RF Frequency [Min] | RF Frequency [Max] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 2.7 GHz | 700 MHz | Board(s) | AD8349 | Modulator | |||||||||||||||||
 Analog Devices | 700 MHz | 2.7 GHz | 2.14 GHz | Modulator | 0.173 " | 16-TSSOP Exposed Pad | 4.4 mm | 150 mA | 5.1 dBm | 4.75 V | 5.5 V | 5.6 dBm | -156 dBm/Hz | 700 MHz | 2.7 GHz | Surface Mount | 16-TSSOP-EP |
