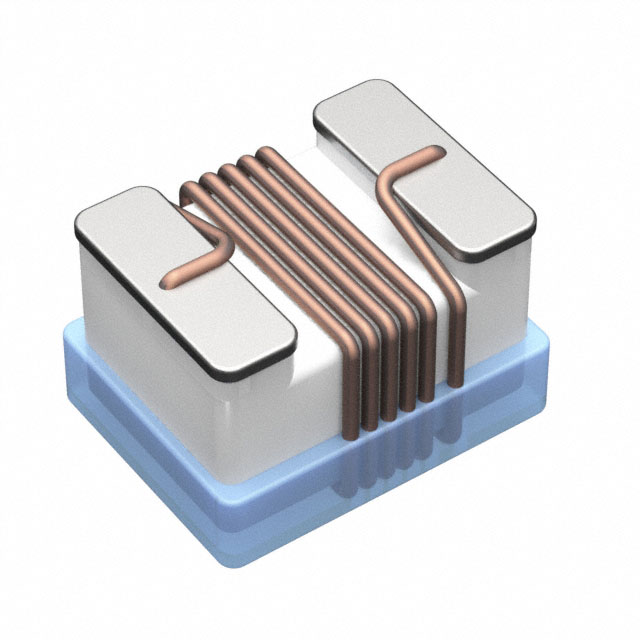

0805CT Series

Manufacturer: Delta Electronics/Components

Catalog

FIXED IND 4.7UH 400MA 1.9OHM SMD

Part	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	Type	Material - Core	Tolerance	Supplier Device Package	Q @ Freq	Current Rating (Amps)	Shielding	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]
Delta Electronics/Components 0805CT-472EJFS	1.9 Ohm	85 °C	-40 C	Surface Mount	4.7 ÁH	Drum Core Wirewound	Ferrite	5 %	0805	7.96 MHz 15	400 mA	Unshielded	0805	0.039 in	1 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	7.96 MHz	65 MHz
Delta Electronics/Components 0805CT-330EKTS	280 mOhm	125 °C	-40 C	Surface Mount	33 nH	Drum Core Wirewound	Ceramic	10 %	0805		600 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	2.35 GHz	500 MHz	50
Delta Electronics/Components 0805CT-6N8EKTS	80 mOhm	125 °C	-40 C	Surface Mount	6.8 nH	Drum Core Wirewound	Ceramic	10 %	0805		800 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	5.5 GHz	1 GHz	50
Delta Electronics/Components 0805CT-150EGTS	100 mOhm	125 °C	-40 C	Surface Mount	15 nH	Drum Core Wirewound	Ceramic	2 %	0805		800 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	2.95 GHz	500 MHz	50
Delta Electronics/Components 0805CT-330EGTS	280 mOhm	125 °C	-40 C	Surface Mount	33 nH	Drum Core Wirewound	Ceramic	2 %	0805		600 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	2.35 GHz	500 MHz	50
Delta Electronics/Components 0805CT-470EJTS	390 mOhm	125 °C	-40 C	Surface Mount	47 nH	Drum Core Wirewound	Ceramic	5 %	0805		600 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	200 MHz	2 GHz	500 MHz	50
Delta Electronics/Components 0805CT-472EKFS	1.9 Ohm	85 °C	-40 C	Surface Mount	4.7 ÁH	Drum Core Wirewound	Ferrite	10 %	0805	7.96 MHz 15	400 mA	Unshielded	0805	0.039 in	1 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	7.96 MHz	65 MHz
Delta Electronics/Components 0805CT-682EJFS	2.4 Ohm	85 °C	-40 C	Surface Mount	6.8 µH	Drum Core Wirewound	Ferrite	5 %	0805	7.96 MHz 15	400 mA	Unshielded	0805	0.039 in	1 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	7.96 MHz	41 MHz
Delta Electronics/Components 0805CT-150EKTS	100 mOhm	125 °C	-40 C	Surface Mount	15 nH	Drum Core Wirewound	Ceramic	10 %	0805		800 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	2.95 GHz	500 MHz	50
Delta Electronics/Components 0805CT-3N9EJTS	60 mOhm	125 °C	-40 C	Surface Mount	3.9 nH	Drum Core Wirewound	Ceramic	5 %	0805	1 GHz 60	800 mA	Unshielded	0805	0.041 in	1.03 mm	1.73 mm	0.068 "	0.09 in	2.29 mm	250 MHz	6.1 GHz
