AT45DB161 Series

Catalog

IC FLASH 16MBIT SPI 15MHZ 28TSOP

Part	Memory Type	Clock Frequency	Memory Organization [custom]	Memory Organization [custom]	Memory Format	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [y]	Package / Case [x]	Package / Case	Memory Size	Write Cycle Time - Word, Page	Memory Interface	Mounting Type	Technology	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization	Supplier Device Package [y]	Supplier Device Package [x]
Microchip Technology AT45DB161B-TI-2.5	Non-Volatile	15 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.5 V	28-TSOP	-40 °C	85 °C	11.8 mm	0.465 "	28-TSSOP	16 Mb	14 ms	SPI	Surface Mount	FLASH
Microchip Technology AT45DB161E-CCUD-T	Non-Volatile	85 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.5 V	9-UBGA (6x6)	-40 °C	85 °C			9-UBGA	16 Mb		SPI	Surface Mount	FLASH	8 µs	6 ms
Microchip Technology AT45DB161D-CCU	Non-Volatile	66 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	24-CBGA (6x8)	-40 °C	85 °C			24-LBGA CSPBGA	16 Mb		SPI	Surface Mount	FLASH

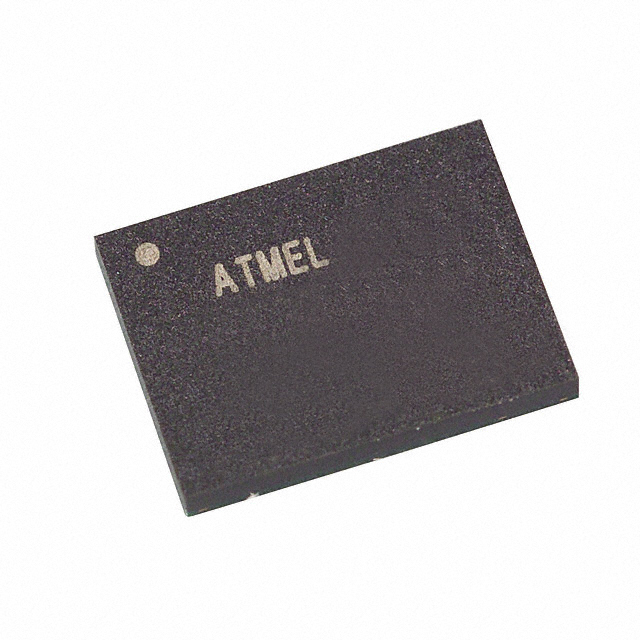

Microchip Technology AT45DB161B-CNC-2.5	Non-Volatile	15 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.5 V	8-CASON (6x8)					8-VDFN	16 Mb	14 ms	SPI	Surface Mount	FLASH
Microchip Technology AT45DB161D-MU	Non-Volatile	66 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	8-VDFN (6x5)	-40 °C	85 °C			8-VDFN Exposed Pad	16 Mb		SPI	Surface Mount	FLASH
Microchip Technology AT45DB161E-MHD2B-T	Non-Volatile	85 MHz			FLASH	3.6 V	2.5 V	8-UDFN (5x6)	-40 °C	85 °C			8-UDFN Exposed Pad	16 Mb		SPI	Surface Mount	FLASH	8 µs	6 ms	512 Bytes 4096 pages
Microchip Technology AT45DB161B-CNI	Non-Volatile	20 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	8-CASON (6x8)	-40 °C	85 °C			8-VDFN	16 Mb	14 ms	SPI	Surface Mount	FLASH
Microchip Technology AT45DB161-JC	Non-Volatile	13 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	32-PLCC					32-LCC (J-Lead)	16 Mb	15 ms	SPI	Surface Mount	FLASH				11.43	13.97
Microchip Technology AT45DB161D-TU	Non-Volatile	66 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	28-TSOP	-40 °C	85 °C	11.8 mm	0.465 "	28-TSSOP	16 Mb		SPI	Surface Mount	FLASH
Microchip Technology AT45DB161-JI	Non-Volatile	13 MHz	4096 pages	528 Bytes	FLASH	3.6 V	2.7 V	32-PLCC	-40 °C	85 °C			32-LCC (J-Lead)	16 Mb	15 ms	SPI	Surface Mount	FLASH				11.43	13.97
