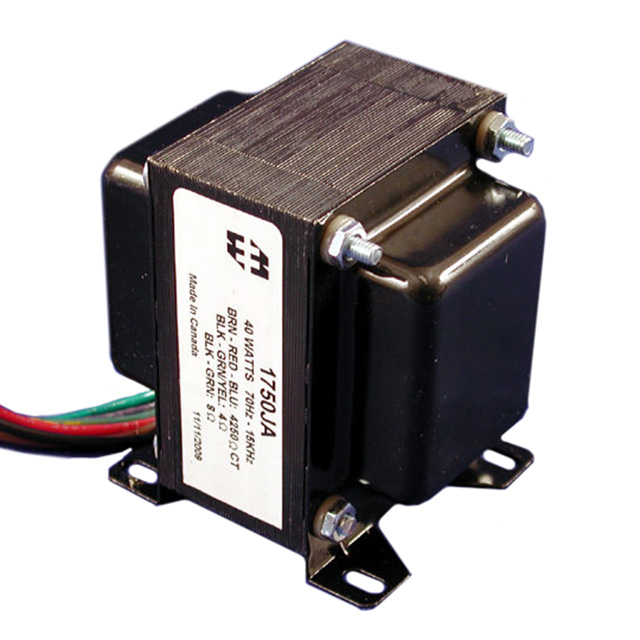

1750J Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
AUDIO TRANSFORMER 65.19:2/65.19:2.82 2000VRMS 82OHM/108.3OHM PRIM. DCR 0.253OHM/0.462OHM SEC. DCR 6 TERMINAL WIRE LEAD FLANGE MOUNT
| Part | DC Resistance (DCR) - Secondary | Mounting Type | Frequency Response | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) - Primary | Frequency Range [Min] | Frequency Range [Max] | Termination Style | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Impedance - Primary (Ohms) | Power Level | Impedance - Secondary (Ohms) | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 253 mOhm 462 mOhm | Chassis Mount | 1 dB | 84.3 mm | 3.319 " | 82 Ohm 108.3 Ohm | 70 Hz | 15 kHz | Wire Leads | 80.01 mm | 3.15 in | 63.5 mm | 2.5 " | 4.25kCT | 40 W | 4 Ohms 8 Ohms | 2000 V |
