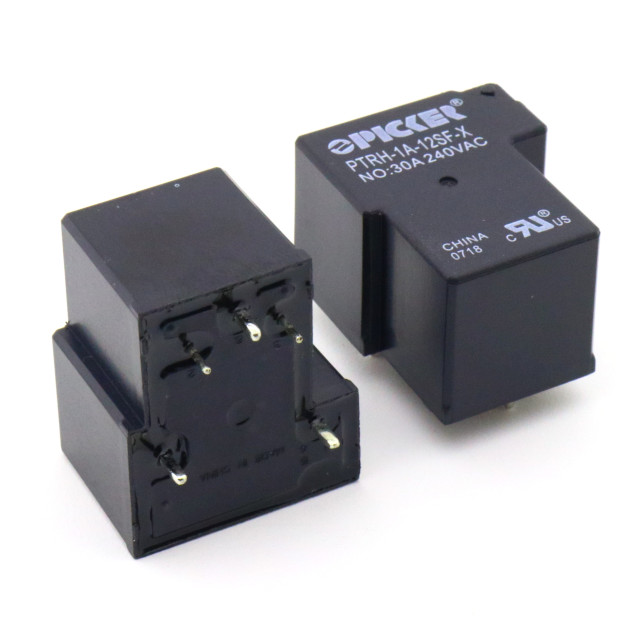

PTRH-1A Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 12V
| Part | Coil Resistance | Release Time | Must Release Voltage | Form A Count | Contact Form | Seal Rating | Relay Type | Coil Insulation | Must Operate Voltage | Operating Temperature (Max) | Operating Temperature (Min) | Operate Time | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Approval Agency | Contact Rating (Current) | Mounting Type | Coil Type | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Coil Voltage | Contact Material | Termination Style | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 150 Ohms | 10 ms | 1.2 V | 1 | SPST-NO | Fully Sealed | General Purpose | Class F | 9 VDC | 125 °C | -40 °C | 15 ms | 9000 VA | 3300 W | cUL cURus UL | 30 A | Through Hole | Non Latching | 300 VAC | 110 VDC | 12 VAC | Silver Cadmium Oxide (AgCdO) | PC Pin | 80 mA |
