DC916A Series
Manufacturer: Analog Devices
Beta
⌘K

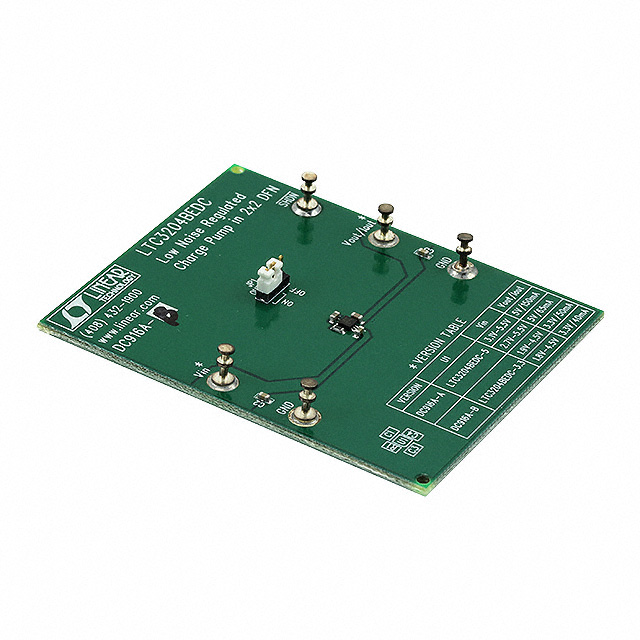

LTC3204BEDC-3.3 DEMO BOARD, LOW NOISE REGULATED CHARGE PUMP IN 2X2 DFN, VIN = 1.8V TO 4.5V, VOUT = 3.3V/(40 TO 50MA MAX)
| Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Frequency - Switching | Voltage - Output | Supplied Contents | Regulator Topology | Current - Output | Outputs and Type | Outputs and Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | DC/DC Step Up | 4.5 V | 1.8 V | Fully Populated | 1.2 MHz | 3.3 V | Board(s) | Boost | 50 mA | Non-Isolated | 1 | LTC3204B-3.3 |
 Analog Devices | DC/DC Step Up | 5.5 V | 2.7 V | Fully Populated | 1.2 MHz | 5 V | Board(s) | Boost | 150 mA | Non-Isolated | 1 | LTC3204-5 |
