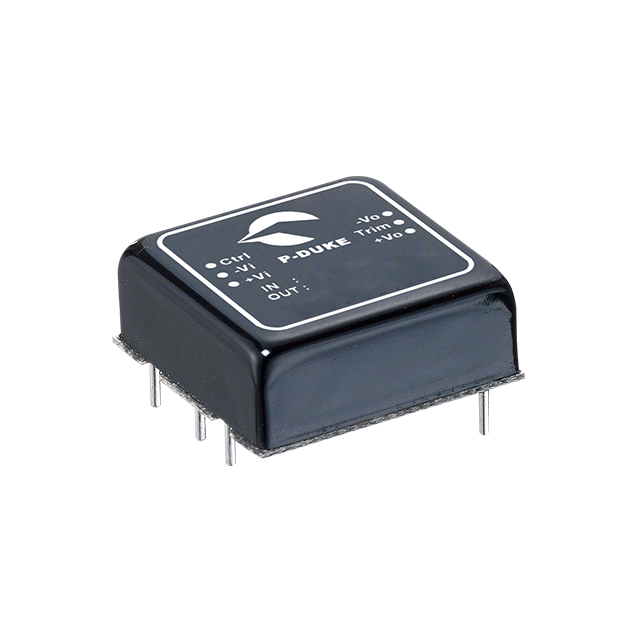

LCD30 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 12V 30W
| Part | Applications | Voltage - Output 1 | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Number of Outputs | Control Features | Features | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Power (Watts) | Voltage - Isolation | Approval Agency | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | ITE (Commercial) | 12 V | 9 V | -40 °C | 100 °C | 6-DIP Module | Isolated Module | 36 V | 2.5 A | 1 | Active Low Enable | Remote On/Off Standby Output | 89 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 30 Watts | 1.6 kV | CB CE cURus | ||
P-DUKE Technology | ITE (Commercial) | 15 V | 9 V | -40 °C | 100 °C | 6-DIP Module | Isolated Module | 36 V | 2 | Active Low Enable | Adjustable Output Remote On/Off | 91 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 30 Watts | 1.6 kV | CB CE cURus | -15 V | 1 A | |
P-DUKE Technology | ITE (Commercial) | 24 V | 9 V | -40 °C | 100 °C | 6-DIP Module | Isolated Module | 36 V | 1.25 A | 1 | Active Low Enable | Remote On/Off Standby Output | 90 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 30 Watts | 1.6 kV | CB CE cURus |
