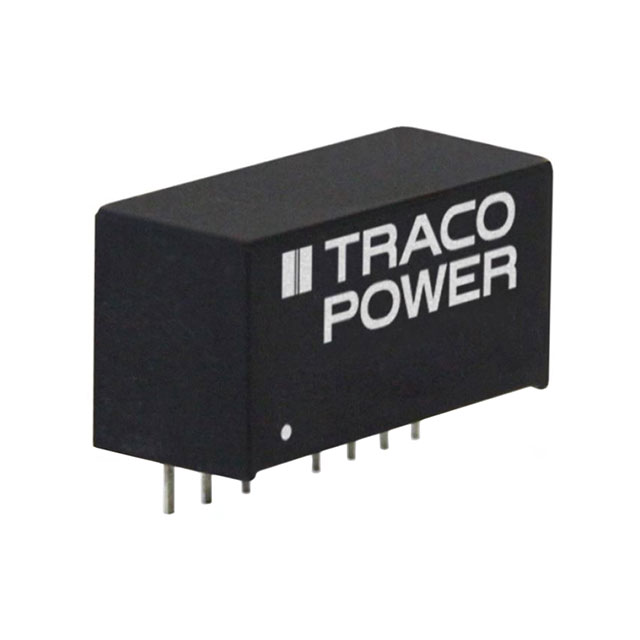

TEC 2 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Package / Case	Efficiency	Number of Outputs	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 2	Mounting Type	Features	Power (Watts)	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TEC 2-1223	8-SIP Module 7 Leads	84 %	2	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	-15 V	Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	15 V	9 V	Isolated Module	95 °C	-40 °C	18 V	67 mA	67 mA
Traco Power TEC 2-1221	8-SIP Module 7 Leads		2	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	-5 V	Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	5 V	9 V	Isolated Module	95 °C	-40 °C	18 V
Traco Power TEC 2-1211	8-SIP Module 7 Leads		1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	5 V	9 V	Isolated Module	95 °C	-40 °C	18 V			400 mA
Traco Power TEC 2-2419	8-SIP Module 7 Leads	85 %	1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	9 V	18 V	Isolated Module	95 °C	-40 °C	36 V			222 mA
Traco Power TEC 2-0913	8-SIP Module 7 Leads	84 %	1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	15 V	4.5 V	Isolated Module	95 °C	-40 °C	13.2 V			134 mA
Traco Power TEC 2-1221WI	8-SIP Module 7 Leads	80 %	2	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	-5 V	Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	5 V	4.5 V	Isolated Module	93 °C	-40 °C	18 V
Traco Power TEC 2-1222	8-SIP Module 7 Leads	85 %	2	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	-12 V	Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	12 V	9 V	Isolated Module	95 °C	-40 °C	18 V	83 mA	83 mA
Traco Power TEC 2-0912	8-SIP Module 7 Leads	84 %	1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	12 V	4.5 V	Isolated Module	95 °C	-40 °C	13.2 V			167 mA
Traco Power TEC 2-2415WI	8-SIP Module 7 Leads		1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	24 V	9 V	Isolated Module	93 °C	-40 °C	36 V			83 mA
Traco Power TEC 2-0919	8-SIP Module 7 Leads	84 %	1	1.6 kV	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in		Through Hole	Remote On/Off SCP	2 W	ITE (Commercial)	9 V	4.5 V	Isolated Module	95 °C	-40 °C	13.2 V			222 mA
