DF3-13P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 13POS 2MM
| Part | Number of Rows | Connector Type | Style | Insulation Height | Insulation Height | Fastening Type | Termination | Overall Contact Length | Contact Finish - Post | Contact Shape | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Shrouding | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Insulation Material | Insulation Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

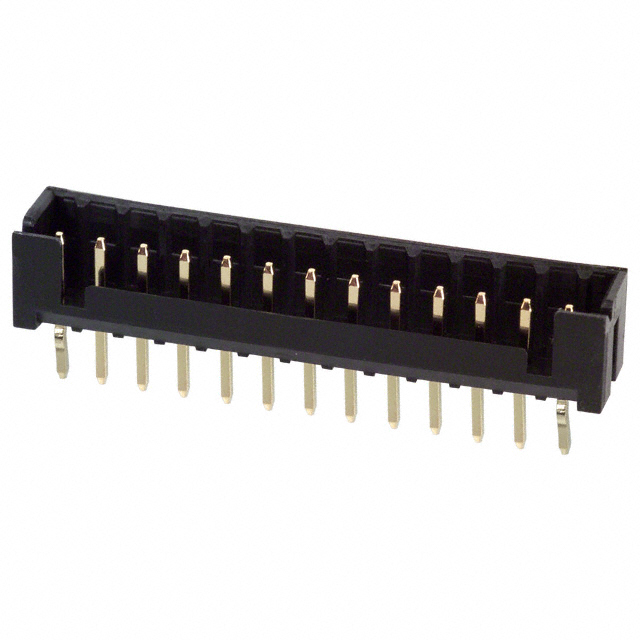

 Hirose Electric Co Ltd | 1 | Header | Board to Board Cable | 0.197 " | 5 mm | Push-Pull | Press-Fit Solder | 0.299 in 7.6 mm | Tin | Square | 0.122 in | 3.1 mm | 3 A | UL94 V-0 | Through Hole | Shrouded - 4 Wall | Brass | 0.114 in | 2.9 mm | All | Nylon Polyamide (PA) | Black | Male Pin | -55 C | 105 ░C | 0.079 " | 2 mm | 13 | |||

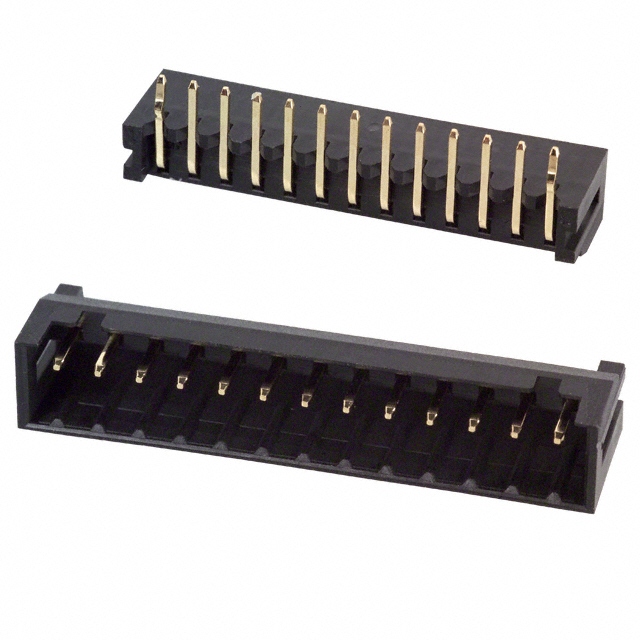

 Hirose Electric Co Ltd | 1 | Header | Board to Board Cable | 0.197 " | 5 mm | Push-Pull | Press-Fit Solder | Square | 0.122 in | 3.1 mm | 3 A | UL94 V-0 | Right Angle Through Hole | Shrouded - 4 Wall | Brass | 0.114 in | 2.9 mm | All | Nylon Polyamide (PA) | Black | Male Pin | -55 C | 105 ░C | 0.079 " | 2 mm | 13 | Gold | 8 µin | 0.203 µm | ||
 Hirose Electric Co Ltd | 1 | Header | Board to Board Cable | 0.197 " | 5 mm | Push-Pull | Press-Fit Solder | 0.299 in 7.6 mm | Square | 0.122 in | 3.1 mm | 3 A | UL94 V-0 | Through Hole | Shrouded - 4 Wall | Brass | 0.114 in | 2.9 mm | All | Nylon Polyamide (PA) | Black | Male Pin | -55 C | 105 ░C | 0.079 " | 2 mm | 13 | Gold | 8 µin | 0.203 µm |
