186-187 Series

Catalog

POWER TRANSFORMERS TRANSFORMER, CHASSIS MOUNT, 115/230VAC, 30VA, 10V C.T.@3A, 186 SERIES

Part	Primary Winding(s)	Weight [custom]	Weight [custom]	Voltage - Isolation	Current - Output (Max) [Max]	Height - Seated (Max) [Max] [z]	Voltage - Primary	Power - Max [Max]	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Voltage - Secondary (Full Load)	Mounting Type	Secondary Winding(s)	Type	Weight	Weight	Height - Seated (Max) [Max]

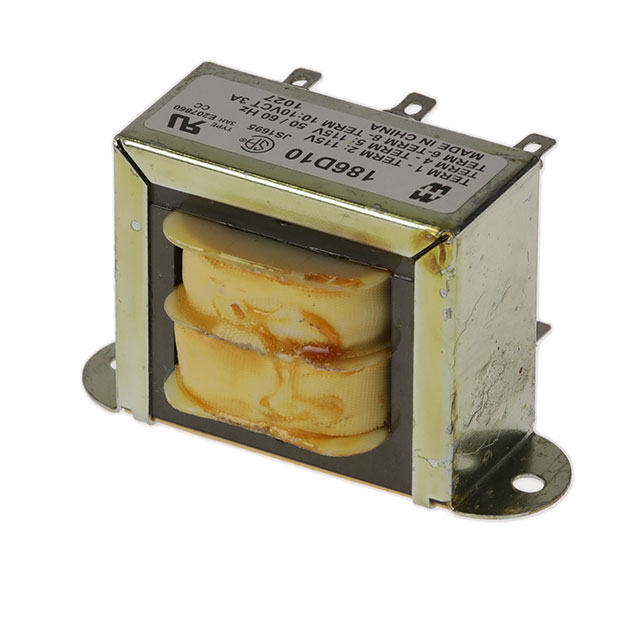

Hammond Manufacturing 186D10	Dual	1.3 lbs	589.7 g	2000 Vrms	3 A	49.02 mm	115 V 230 V	30 VA	Quick Connect Solder	52.2 mm	3.25 "	10 V	Chassis Mount	Single	Laminated Core
Hammond Manufacturing 187D24	Single			2000 Vrms	1.25 A	49.02 mm	115 V	30 VA	Quick Connect Solder	52.2 mm	3.25 "	24 V	Chassis Mount	Single	Laminated Core	1.1 lbs	499 g
Hammond Manufacturing 187D28	Single			2000 Vrms	1.07 A	49.02 mm	115 V	30 VA	Quick Connect Solder	52.2 mm	3.25 "	28 V	Chassis Mount	Single	Laminated Core	1.1 lbs	499 g
Hammond Manufacturing 187F24	Single			2000 Vrms	4 A		115 V	96 VA	Quick Connect Solder	66.68 mm	102.36 mm	24 V	Chassis Mount	Single	Laminated Core	2.7 lbs	1.2 kg	65.02 mm
Hammond Manufacturing 186D28	Dual	1.3 lbs	589.7 g	2000 Vrms	1.07 A	49.02 mm	115 V 230 V	30 VA	Quick Connect Solder	52.2 mm	3.25 "	28 V	Chassis Mount	Single	Laminated Core
Hammond Manufacturing 186C28	Dual			2000 Vrms	420 mA		115 V 230 V	12 VA	Quick Connect Solder	43.82 mm	71.37 mm	28 V	Chassis Mount	Single	Laminated Core	0.68 lb	308.44 g	41.15 mm
Hammond Manufacturing 187B16	Single			2000 Vrms	400 mA	34.8 mm	115 V	6.4 VA	Quick Connect Solder	41.28 mm	60.2 mm	16 V	Chassis Mount	Single	Laminated Core	0.45 lb	204.12 g
Hammond Manufacturing 187B56	Single			2000 Vrms	110 mA	34.8 mm	115 V	6.16 VA	Quick Connect Solder	41.28 mm	60.2 mm	56 V	Chassis Mount	Single	Laminated Core	0.45 lb	204.12 g
Hammond Manufacturing 187A36	Single			2000 Vrms	60 mA	29.97 mm	115 V	2.34 VA	Quick Connect Solder	36.45 mm	52.32 mm	36 V	Chassis Mount	Single	Laminated Core	0.29 lb	131.54 g
Hammond Manufacturing 187F12	Single			2000 Vrms	8 A		115 V	100.8 VA	Quick Connect Solder	66.68 mm	102.36 mm	12.6 V	Chassis Mount	Single	Laminated Core	2.7 lbs	1.2 kg	65.02 mm
