3020-16 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN HEADER SMD 16POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Number of Rows [custom] | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish - Post | Current Rating (Amps) | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Mounting Type | Termination | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Material | Connector Type | Contact Finish - Mating | Number of Positions | Contact Shape | Contact Material | Features | Style | Voltage Rating | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

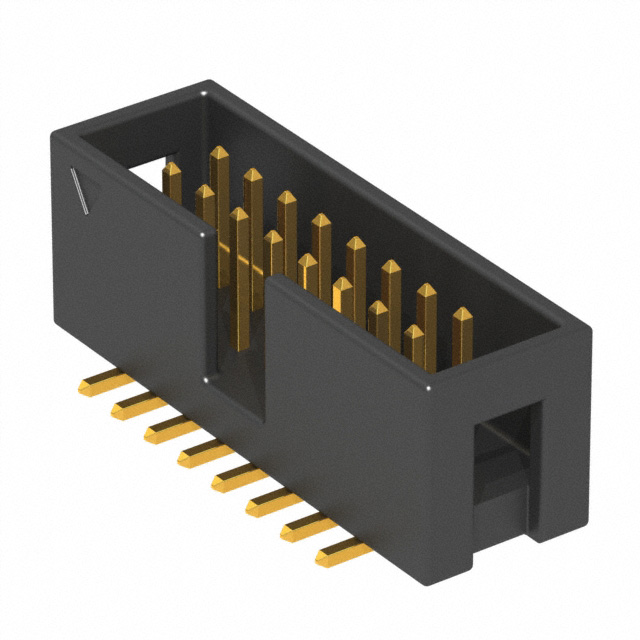

 CNC Tech | Flash | Flash | 2 | UL94 V-0 | -40 C | 105 ░C | Male Pin | Gold | 3 A | Black | 0.1 in | 2.54 mm | All | Surface Mount | Solder | 0.354 in | 9 mm | Push-Pull | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Header | Gold | 16 | Square | Copper Alloy | Keying Slot Pick and Place | Board to Cable/Wire | ||||||||

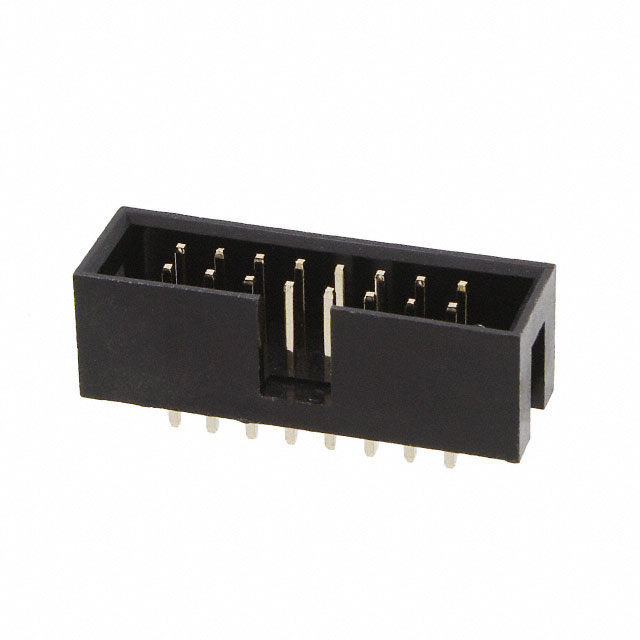

 CNC Tech | Flash | Flash | 2 | UL94 V-0 | -40 C | 105 ░C | Male Pin | Gold | 3 A | Black | 0.1 in | 2.54 mm | All | Through Hole | Solder | 0.354 in | 9 mm | Push-Pull | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Header | Gold | 16 | Square | Brass | Keying Slot | Board to Cable/Wire | 250 VAC | 0.118 in | 3 mm | |||||

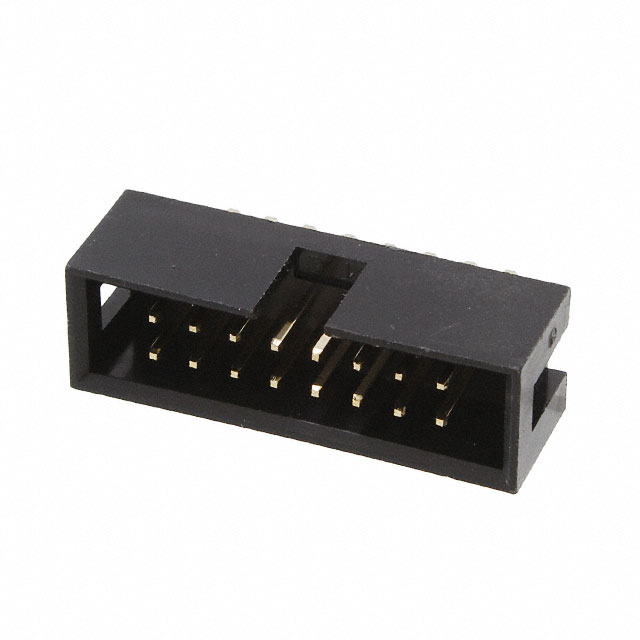

 CNC Tech | Flash | Flash | 2 | UL94 V-0 | -40 C | 105 ░C | Male Pin | Gold | 3 A | Black | 0.1 in | 2.54 mm | All | Right Angle Through Hole | Solder | Push-Pull | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Header | Gold | 16 | Square | Brass | Keying Slot | Board to Cable/Wire | 250 VAC | 0.118 in | 3 mm | 8.8 mm | 0.346 in | |||||

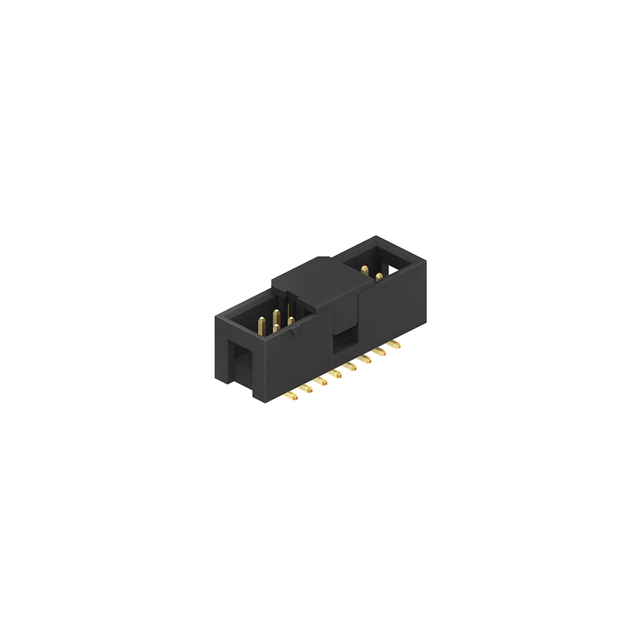

 CNC Tech | Flash | Flash | 2 | UL94 V-0 | -40 C | 105 ░C | Male Pin | Gold | 3 A | Black | 0.1 in | 2.54 mm | All | Surface Mount | Solder | 0.354 in | 9 mm | Push-Pull | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | Header | Gold | 16 | Square | Brass | Keying Slot | Board to Cable/Wire | ||||||||
 CNC Tech | 2 | UL94 V-0 | -40 C | 105 ░C | Male Pin | 3 A | 0.1 in | 2.54 mm | All | Right Angle Through Hole | Solder | 0.35 in | Push-Pull | 0.1 " | 2.54 mm | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | Header | Gold | 16 | Square | Brass | Board to Cable/Wire | 0.118 in | 3 mm | 0.76 Ám | 30 Áin | 8.89 mm |
