AMA18 Series
Manufacturer: aimtec
Beta
⌘K

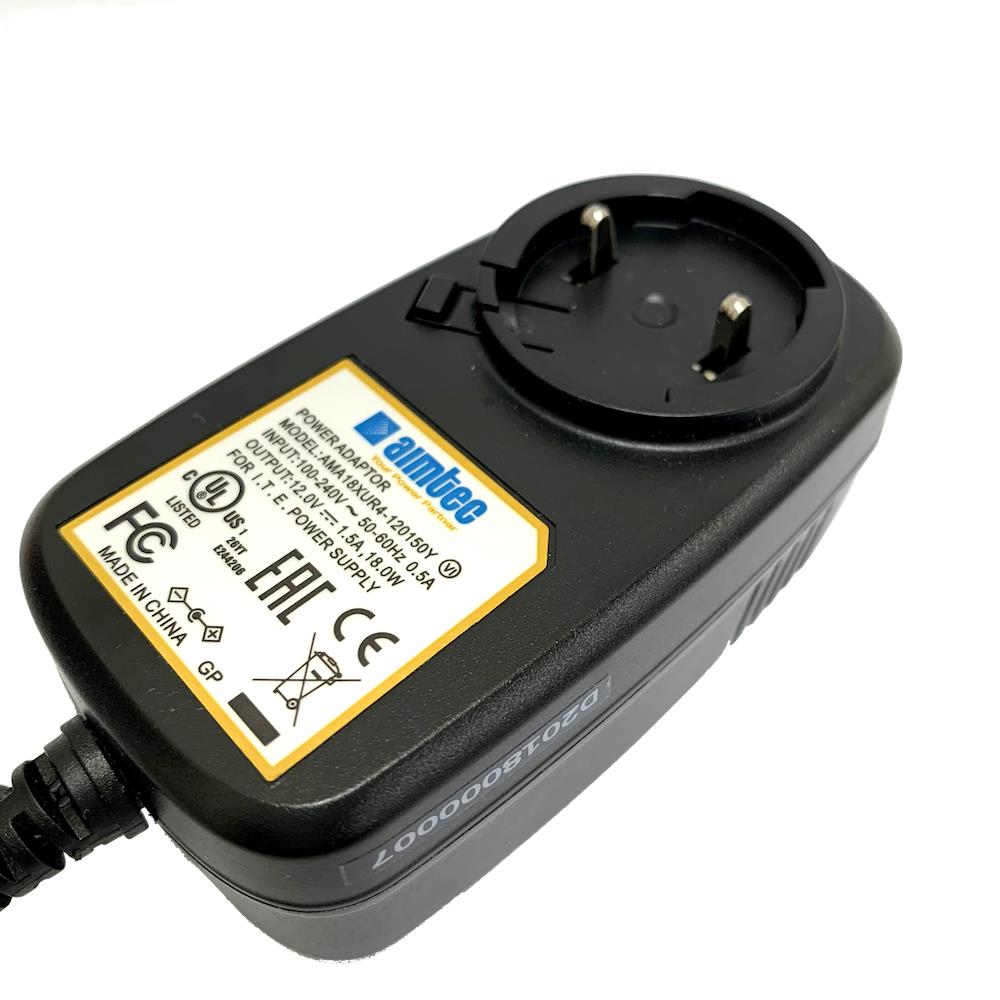

AC/DC WALL MOUNT ADAPTER 12V 18W
| Part | Weight | Weight | Approval Agency | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Input Connector | Power (Watts) | Polarization | Current - Output (Max) [Max] | Input Type | Voltage - Output | Applications | Cord Length | Cord Length | Output Connector | Output Connector [diameter] | Output Connector [x] | Efficiency | Form | No Load Power Consumption | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 0.265 lb | 120 g | CE FCC UL | 60950-1 62368-1 | 40 °C | 0 °C | North America | Multi-Blade | 18 W | Positive Center | 1.5 A | Multi-Blade (Single Blade Included) | 12 V | ITE (Commercial) | 1.5 m | 60.2 in | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm | 85 % | Wall Mount | 75 mW | 1.49 in | 3.55 in | 90.3 mm | 37.9 mm | 1.97 in | 50 mm | 264 VAC | 90 VAC |
