RJK1557 Series

Catalog

MOSFET N-CH 150V 25A 8WPAK

Part	Current - Continuous Drain (Id) @ 25°C	Mounting Type	FET Type	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Technology	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Rds On (Max) @ Id, Vgs	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [x]	Operating Temperature	Drain to Source Voltage (Vdss)

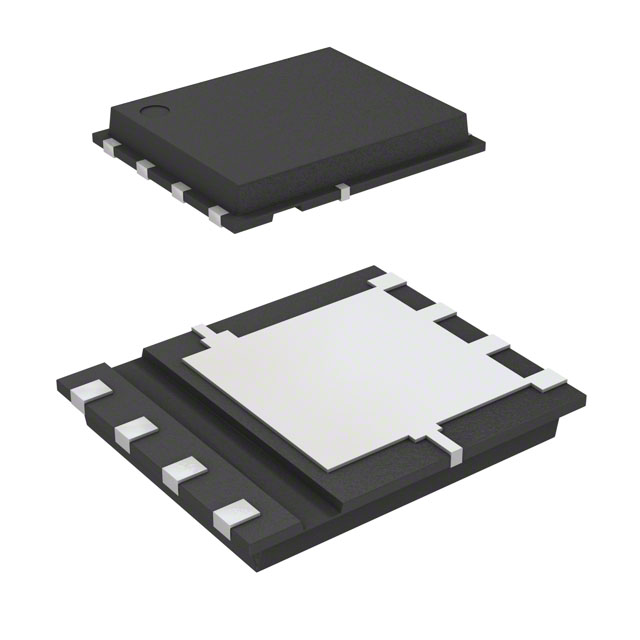

Renesas Electronics Corporation RJK1557DPA-00#J0	25 A	Surface Mount	N-Channel	8-PowerWDFN	10 V	MOSFET (Metal Oxide)	1250 pF	30 V	58 mOhm	8-WPAK (3)	20 nC	150 °C	150 V
