LMC6035-Q1 Series

Automotive-grade, dual, 15.5-V, 1.4-MHz operational amplifier

Catalog

Automotive-grade, dual, 15.5-V, 1.4-MHz operational amplifier

Part	Package / Case	Package / Case [custom]	Package / Case	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Current - Output / Channel	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Gain Bandwidth Product	Current - Supply	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Output Type	Slew Rate	Mounting Type	Supplier Device Package	Package / Case [y]	Package / Case [x]	Board Type	Utilized IC / Part	Channels per IC	Supplied Contents	Qualification	Grade
Texas Instruments LMC6035IMMX	8-MSOP 8-TSSOP	0.118 in	3 mm	15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount
Texas Instruments LMC6035IMX/NOPB	8-SOIC			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-SOIC	3.9 mm	0.154 in
Texas Instruments LMC6035ITLX/NOPB	8-WFBGA DSBGA			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-DSBGA (1.56x1.56)
Texas Instruments LMC6035IBPCONV														General Purpose	Single-Ended						Bare (Unpopulated)	LMC6035IBP	2 - Dual	Board(s)
Texas Instruments LMC6035IMXQ1	8-SOIC			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-SOIC	3.9 mm	0.154 in					AEC-Q100	Automotive
Texas Instruments LMC6035IM	8-SOIC			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-SOIC	3.9 mm	0.154 in
Texas Instruments LMC6035IMM	8-MSOP 8-TSSOP	0.118 in	3 mm	15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount

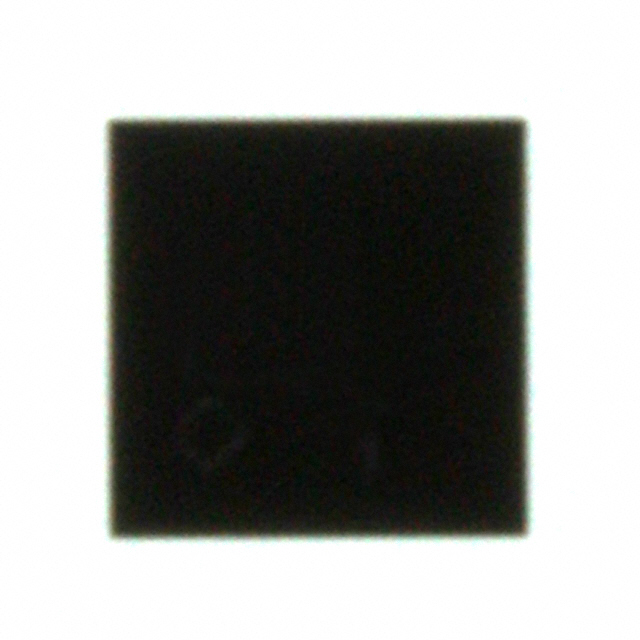

Texas Instruments LMC6035IBP	8-VFBGA			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-DSBGA
Texas Instruments LMC6035IMMX/NOPB	8-MSOP 8-TSSOP	0.118 in	3 mm	15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount
Texas Instruments LMC6035IMQ1	8-SOIC			15.5 V	500 çV	8 mA	2 V	0.02 pA	1.4 MHz	650 µA	2	85 °C	-40 °C	CMOS	Differential Rail-to-Rail	1.5 V/µs	Surface Mount	8-SOIC	3.9 mm	0.154 in					AEC-Q100	Automotive

Catalog

Automotive-grade, dual, 15.5-V, 1.4-MHz operational amplifier

Key Features

• AEC-Q100 qualified for automotive applicationsTemperature grade 3: –40°C to +85°C, TATypical unless otherwise notedSpecified 2.7V, 3V, 5V, and 15V performanceSpecified for 2kΩ and 600Ω loadsWide operating range: 2.0V to 15.5VUltra-low input current: 20fARail-to-rail output swingAt 600Ω: 200mV from either rail at 2.7VAt 100kΩ: 5mV from either rail at 2.7VHigh voltage gain: 126dBWide input common-mode voltage range–0.1V to +2.3V at VS = 2.7VLow distortion: 0.01% at 10kHzAEC-Q100 qualified for automotive applicationsTemperature grade 3: –40°C to +85°C, TATypical unless otherwise notedSpecified 2.7V, 3V, 5V, and 15V performanceSpecified for 2kΩ and 600Ω loadsWide operating range: 2.0V to 15.5VUltra-low input current: 20fARail-to-rail output swingAt 600Ω: 200mV from either rail at 2.7VAt 100kΩ: 5mV from either rail at 2.7VHigh voltage gain: 126dBWide input common-mode voltage range–0.1V to +2.3V at VS = 2.7VLow distortion: 0.01% at 10kHz

Description

The LMC6035-Q1 is an economical, low-voltage op amp capable of rail-to-rail output swing into loads of 600Ω. These devices also feature a well behaved decrease in specifications at supply voltages less than the specified 2.7V operation. This decrease provides a comfort zone for adequate operation at voltages significantly less than 2.7V. The ultra low input current (IB) makes this device and excellent choice for low-power, active-filter applications because a low IB allows the use of higher resistor values and lower capacitor values. In addition, the drive capability of the LMC6035-Q1 makes this op amp an excellent choice in a broad range of applications for low-voltage systems. The LMC6035-Q1 is an economical, low-voltage op amp capable of rail-to-rail output swing into loads of 600Ω. These devices also feature a well behaved decrease in specifications at supply voltages less than the specified 2.7V operation. This decrease provides a comfort zone for adequate operation at voltages significantly less than 2.7V. The ultra low input current (IB) makes this device and excellent choice for low-power, active-filter applications because a low IB allows the use of higher resistor values and lower capacitor values. In addition, the drive capability of the LMC6035-Q1 makes this op amp an excellent choice in a broad range of applications for low-voltage systems.
