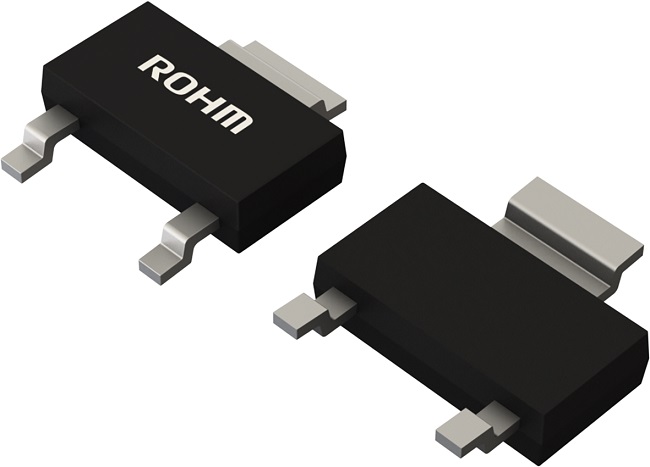

600V 2.8A SOT-223-3, High-speed switching Power MOSFET
600V 2.8A SOT-223-3, High-speed switching Power MOSFET
600V 2.8A SOT-223-3, High-speed switching Power MOSFET
| Part | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Mounting Type | Package / Case | Supplier Device Package | Technology | Operating Temperature | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | FET Type | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 12 nC | 20 V | 10 V | 350 pF | 600 V | 870 mOhm | Surface Mount | TO-261-3 | SOT-223-3 | MOSFET (Metal Oxide) | 150 °C | 2.8 A | 12.3 W | N-Channel | 5.5 V |
