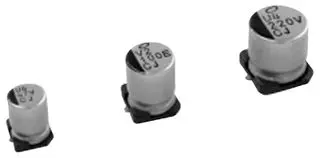

PCJ Series

Manufacturer: Nichicon

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 680 ΜF, 2.5 V, RADIAL CAN - SMD, 0.013 OHM

Part	Voltage - Rated	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Applications	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Ripple Current @ High Frequency	Ratings	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max)
Nichicon PCJ0E681MCL1GS	2.5 V	Surface Mount	0.276 in	7 mm	20 %	General Purpose	680 µF	0.315 in	8 mm	Polymer	4.1 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	13 mOhms	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in
Nichicon PCJ1A471MCL1GS	10 V	Surface Mount	0.315 in	8 mm	20 %	General Purpose	470 µF	0.394 in	10 mm	Polymer	3.8 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	19 mOhm	Radial Can - SMD	10.3 mm	10.3 mm	0.406 "	0.406 in
Nichicon PCJ0E391MCL1GS	2.5 V	Surface Mount	0.236 "		20 %	General Purpose	390 µF	0.248 "	6.3 mm	Polymer	3.4 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	15 mOhm	Radial Can - SMD	6.6 mm	6.6 mm	0.26 in	0.26 in	6 mm
Nichicon PCJ0E181MCL1GS	2.5 V	Surface Mount	0.236 "		20 %	General Purpose	180 µF	0.197 in	5 mm	Polymer	2.67 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	21 mOhms	Radial Can - SMD	0.209 in 5.3 mm	0.209 in 5.3 mm			6 mm
Nichicon PCJ0E152MCL6GS	2.5 V	Surface Mount	0.394 in	10 mm	20 %	General Purpose	1.5 mF	0.315 in	8 mm	Polymer	5.22 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	10 mOhm	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in
Nichicon PCJ0G152MCL4GS	4 V	Surface Mount	0.472 in		20 %	General Purpose	1.5 mF	0.315 in	8 mm	Polymer	5.2 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	9 mOhms	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in	12 mm
Nichicon PCJ0E821MCL6GS	2.5 V	Surface Mount	0.315 in	8 mm	20 %	General Purpose	820 µF	0.315 in	8 mm	Polymer	4.26 A	AEC-Q200	2000 Hrs	-55 C	105 ░C	12 mOhms	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in
