MIC45212 Series

Catalog

26V, 14A POWER MODULE WITH HYPER SPEED CONTROL 64 B2QFN 12X12X4MM T/R ROHS COMPLIANT: YES

Part	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Efficiency	Package / Case	Type	Applications	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Regulator Topology	Utilized IC / Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Current - Output	Outputs and Type	Outputs and Type	Frequency - Switching	Supplied Contents

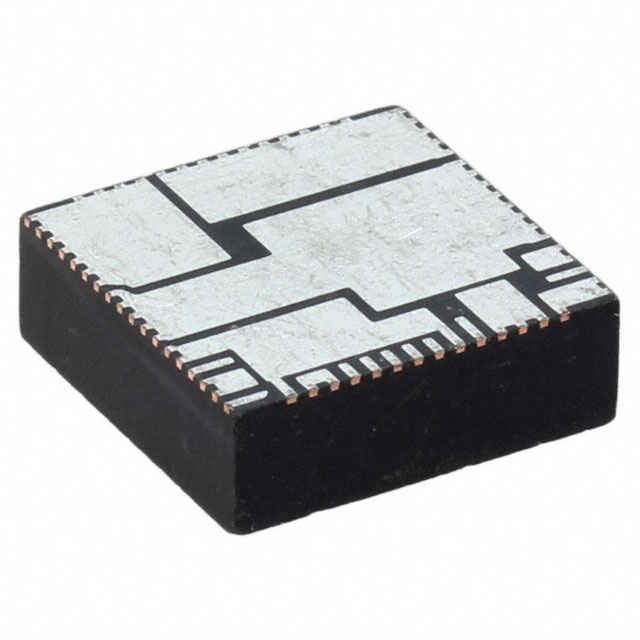

Microchip Technology MIC45212-2YMP-T1	64-B2QFN (12x12)	14 A	26 V	0.8 V	5.5 V	4.5 V	4 mm	12 mm	0.16 in	0.47 "	0.47 in	12 mm	Surface Mount	93 %	64-PowerBQFN Module	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP Remote On/Off SCP	125 °C	-40 °C
Microchip Technology MIC45212-1YMP-TR	64-B2QFN (12x12)	14 A	26 V	0.8 V	5.5 V	4.5 V	4 mm	10 mm	0.16 in	0.39 "	0.39 "	10 mm	Surface Mount	93 %	64-PowerBQFN Module	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP Remote On/Off SCP	125 °C	-40 °C
Microchip Technology MIC45212-1YMP-T1	64-B2QFN (12x12)	14 A	26 V	0.8 V	5.5 V	4.5 V	4 mm	12 mm	0.16 in	0.47 "	0.47 in	12 mm	Surface Mount	93 %	64-PowerBQFN Module	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP Remote On/Off SCP	125 °C	-40 °C

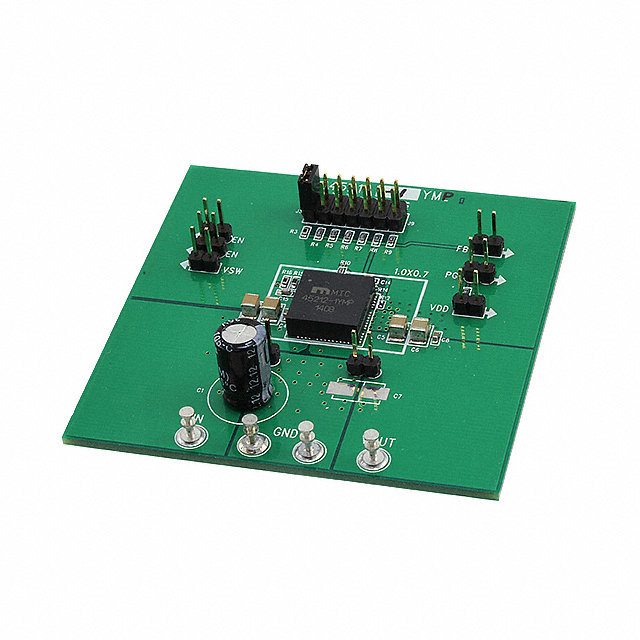

Microchip Technology MIC45212-1YMP-EV																						Fully Populated	Buck	MIC45212-1	DC/DC Step Down	4.5 V	26 V	5 V	14 A	Non-Isolated	1	600 kHz	Board(s)
