AZ733WC Series

Catalog

RELAY GEN PURPOSE DPDT 10A 12V

Part	Coil Resistance	Switching Voltage [Max]	Release Time	Contact Material	Coil Voltage	Approval Agency	Relay Type	Load - Max Switching	Coil Type	Coil Insulation	Mounting Type	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Current	Contact Form	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Operate Time
American Zettler AZ733WC-2CE-12DE	180 Ohms	150 VDC 400 VAC	4 ms	Silver Cadmium Oxide (AgCdO)	12 VDC	CUR TUV UL	General Purpose	240 W 2500 VA	Non Latching	Class B	Through Hole	Sealed - Fully	70 °C	-40 C	PC Pin	66.7 mA	DPDT (2 Form C)	12 VDC	1.2 VDC	10 A	10 ms

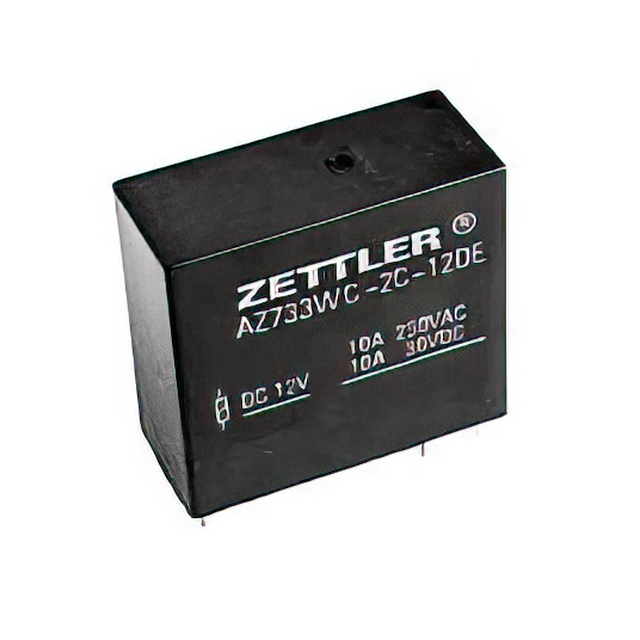

American Zettler AZ733WC-2C-12DE	180 Ohms	150 VDC 400 VAC	4 ms	Silver Cadmium Oxide (AgCdO)	12 VDC	CUR TUV UL	General Purpose	240 W 2500 VA	Non Latching	Class B	Through Hole	Sealed - Fully	70 °C	-40 C	PC Pin	66.7 mA	DPDT (2 Form C)	12 VDC	1.2 VDC	10 A	10 ms
American Zettler AZ733WC-2CE-18DE	31.2 Ohms	150 VDC 400 VAC	4 ms	Silver Cadmium Oxide (AgCdO)	18 VDC	CUR TUV UL	General Purpose	240 W 2500 VA	Non Latching	Class B	Through Hole	Sealed - Fully	70 °C	-40 C	PC Pin	576.9 mA	DPDT (2 Form C)	18 VDC	1.8 VDC	10 A	10 ms
American Zettler AZ733WC-2CE-6DE	45 Ohms	150 VDC 400 VAC	4 ms	Silver Cadmium Oxide (AgCdO)		CUR TUV UL	General Purpose	240 W 2500 VA	Non Latching	Class B	Through Hole	Sealed - Fully	70 °C	-40 C	PC Pin	133.3 mA	DPDT (2 Form C)	6 VDC	0.6 VDC	10 A	10 ms
American Zettler AZ733WC-2CE-24DE	720 Ohms	150 VDC 400 VAC	4 ms	Silver Cadmium Oxide (AgCdO)	24 VDC	CUR TUV UL	General Purpose	240 W 2500 VA	Non Latching	Class B	Through Hole	Sealed - Fully	70 °C	-40 C	PC Pin	33.3 mA	DPDT (2 Form C)	24 VDC	2.4 VDC	10 A	10 ms
