MPH04 Series

Catalog

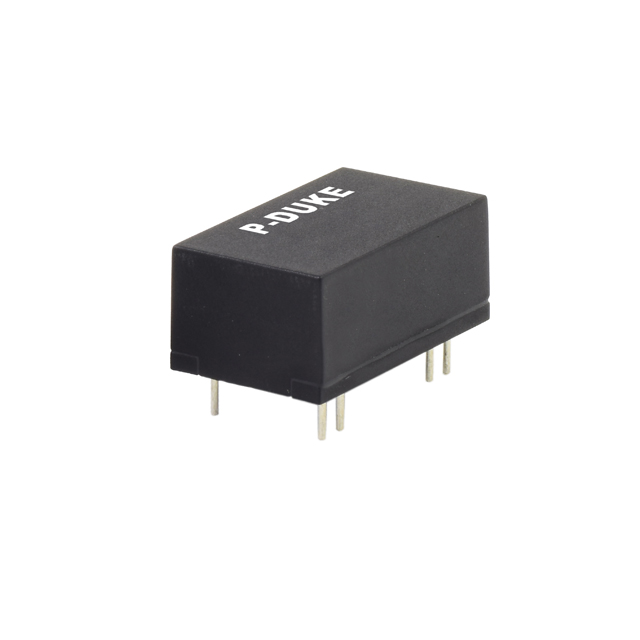

DC DC CONVERTER 5V 3.5W

Part	Features	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Type	Package / Case	Number of Outputs	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Current - Output (Max)	Voltage - Output 2
P-DUKE Technology MPH04-12S05	Remote On/Off	5 V	79 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	105 C	-40 °C	9 V	Through Hole	5000 V	Isolated Module	16-DIP Module 7 Leads	1	3.5 W	CB CE cURus	700 mA	18 V	ITE (Commercial) Medical
P-DUKE Technology MPH04-24S15	Remote On/Off	15 V	83 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	105 C	-40 °C	18 V	Through Hole	5000 V	Isolated Module	16-DIP Module 7 Leads	1	3.5 W	CB CE cURus		36 V	ITE (Commercial) Medical
P-DUKE Technology MPH04-05S05	Remote On/Off	5 V	77 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	105 C	-40 °C	4.5 V	Through Hole	5000 V	Isolated Module	16-DIP Module 7 Leads	1	3.5 W	CB CE cURus	700 mA	12 V	ITE (Commercial) Medical
P-DUKE Technology MPH04-24S05	Remote On/Off	5 V	79 %	0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	105 C	-40 °C	18 V	Through Hole	5000 V	Isolated Module	16-DIP Module 7 Leads	1	3.5 W	CB CE cURus	700 mA	36 V	ITE (Commercial) Medical
P-DUKE Technology MPH04-12D12	Remote On/Off	12 V		0.57 "	24.3 mm	0.96 "	10.2 mm	14.4 mm	0.4 "	105 C	-40 °C	9 V	Through Hole	5000 V	Isolated Module	16-DIP Module 7 Leads	2	3.5 W	CB CE cURus		18 V	ITE (Commercial) Medical	146 mA	-12 V
