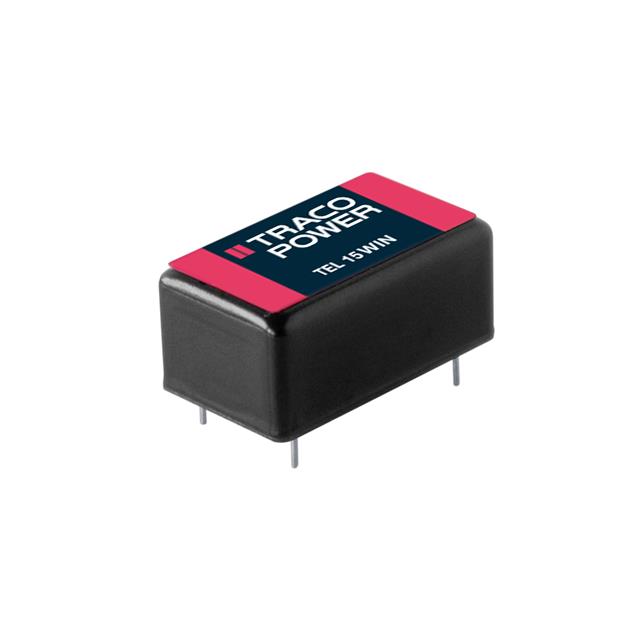

TEL 15WIN Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W 18-75VIN 12V 1250MA COMPACT DIP-16 METAL CASE
| Part | Efficiency | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Package / Case | Standard Number | Power (Watts) | Voltage - Output 1 | Approval Agency | Applications | Voltage - Isolation | Features | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 87 % | Isolated Module | 10.2 mm | 0.94 in | 0.4 " | 23.8 mm | 13.7 mm | 0.54 in | 1.25 A | 75 V | 16-DIP Module 5 Leads | 62368-1 | 15 W | 12 V | CB cURus | ITE (Commercial) | 1800 V | Baseplate | 1 | 80 °C | -40 C | Through Hole | 18 V |
 Traco Power | 87 % | Isolated Module | 10.2 mm | 0.94 in | 0.4 " | 23.8 mm | 13.7 mm | 0.54 in | 625 mA | 36 V | 16-DIP Module 5 Leads | 62368-1 | 15 W | 24 V | CB cURus | ITE (Commercial) | 1800 V | Baseplate | 1 | 80 °C | -40 C | Through Hole | 9 V |
