E2044S Series
Manufacturer: Prysmian Group
Beta
⌘K

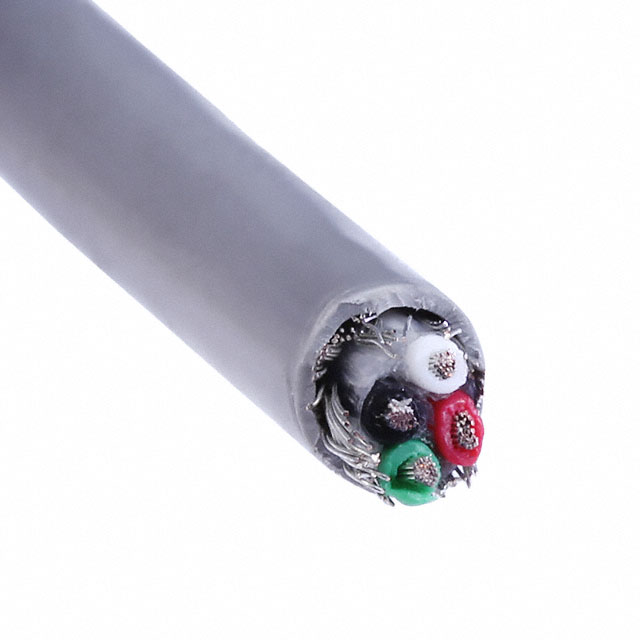

CABLE 4COND 16AWG GRAY SHLD 100'
| Part | Wire Gauge | Features | Voltage | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Usage | Cable Type | Length | Length | Conductor Material | Shield Type | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 16 AWG | Drain Wire Rip Cord | 300 VDC | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 0.381 mm | 0.015 in | Poly-Vinyl Chloride (PVC) | Gray | 5.44 mm | 0.214 in | 4 | Alarm Security Sound | Multi-Conductor | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Copper Bare | Foil | ||
Prysmian Group | 16 AWG | Drain Wire Rip Cord | 300 VDC | 19 | 0.0117 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 0.381 mm | 0.015 in | Poly-Vinyl Chloride (PVC) | Gray | 5.44 mm | 0.214 in | 4 | Alarm Security Sound | Multi-Conductor | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Bare | Foil | Flexfoil® | 100 % |
