UVY2G Series

Manufacturer: Nichicon

Catalog

CAP ALUM 47UF 20% 400V RADIAL TH

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Lead Spacing	Lead Spacing	Voltage - Rated	Mounting Type	Ripple Current @ Low Frequency	Applications	Tolerance	Polarization	Lifetime @ Temp.	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]

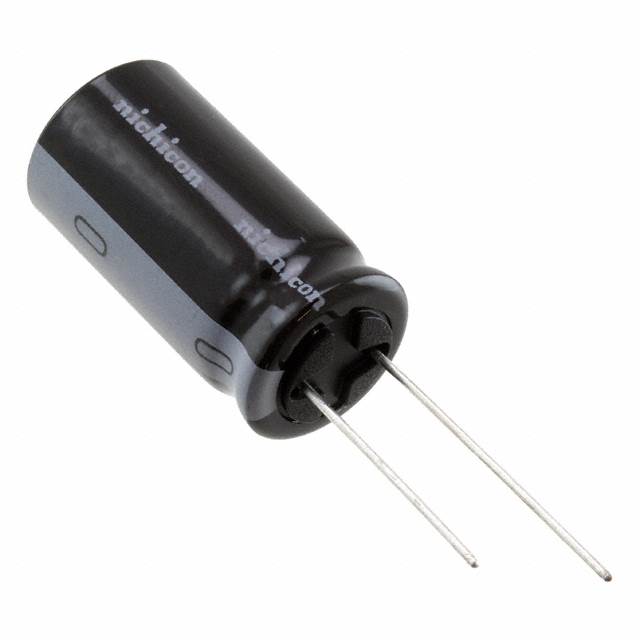

Nichicon UVY2G470MHD	-40 C	105 ░C	Can Radial	0.295 in	7.5 mm	400 V	Through Hole	200 mA	General Purpose	20 %	Polar	2000 Hrs	47 µF	0.63 in	16 mm	1.063 in	27 mm	230 mA

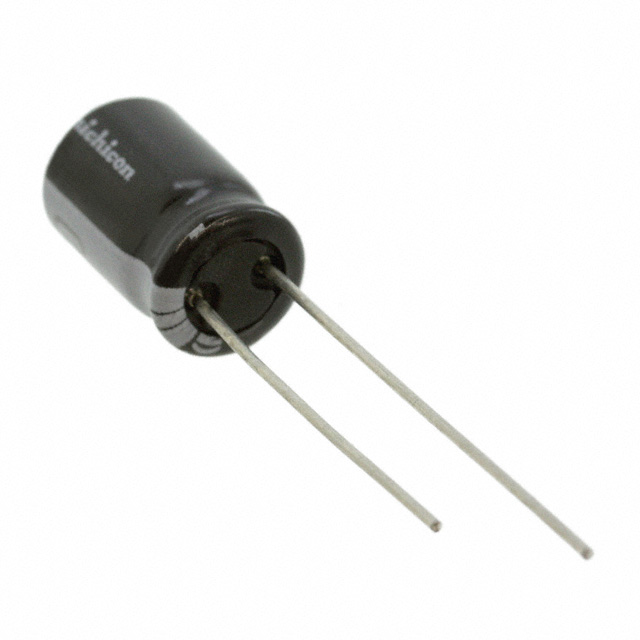

Nichicon UVY2G2R2MPD	-40 C	105 ░C	Can Radial	0.138 in	3.5 mm	400 V	Through Hole	27 mA	General Purpose	20 %	Polar	1000 Hrs	2.2 µF	0.315 in	8 mm			31.05 mA	0.512 "	13 mm

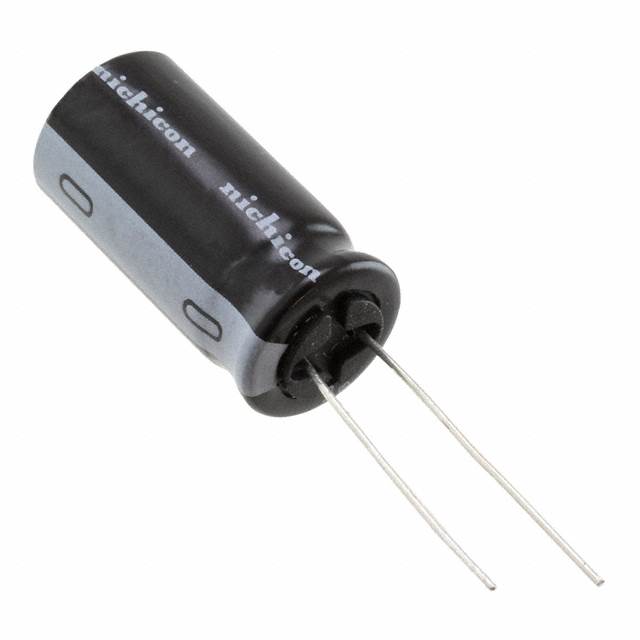

Nichicon UVY2G220MHD1TO	-40 C	105 ░C	Can Radial	0.197 "	5 mm	400 V	Through Hole	140 mA	General Purpose	20 %	Polar	2000 Hrs	22 µF	0.492 in	12.5 mm	1.063 in	27 mm	161 mA
Nichicon UVY2G220MHD	-40 C	105 ░C	Can Radial	0.197 "	5 mm	400 V	Through Hole	140 mA	General Purpose	20 %	Polar	2000 Hrs	22 µF	0.492 in	12.5 mm	1.063 in	27 mm	161 mA

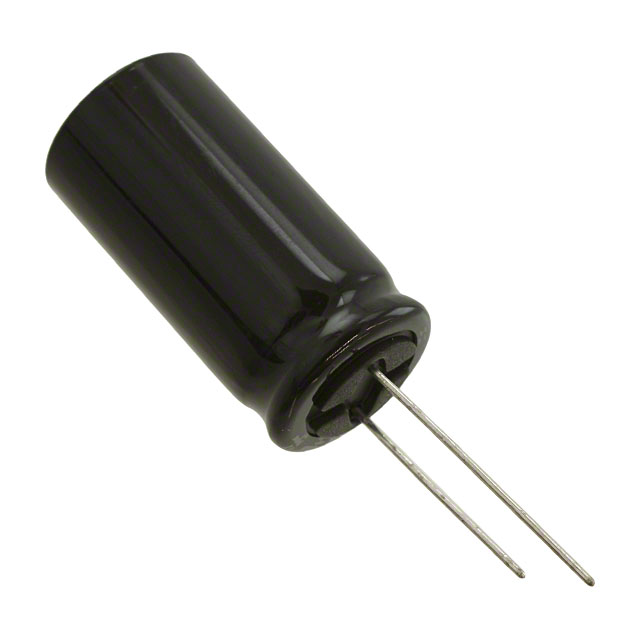

Nichicon UVY2G101MHD	-40 C	105 ░C	Can Radial	0.295 in	7.5 mm	400 V	Through Hole	310 mA	General Purpose	20 %	Polar	2000 Hrs	100 µF	0.709 in	18 mm			356.5 mA	1.476 in	37.5 mm
Nichicon UVY2G100MPD	-40 C	105 ░C	Can Radial	0.197 "	5 mm	400 V	Through Hole	64 mA	General Purpose	20 %	Polar	2000 Hrs	10 µF	0.394 in	10 mm			73.6 mA		0.689 in	17.5 mm

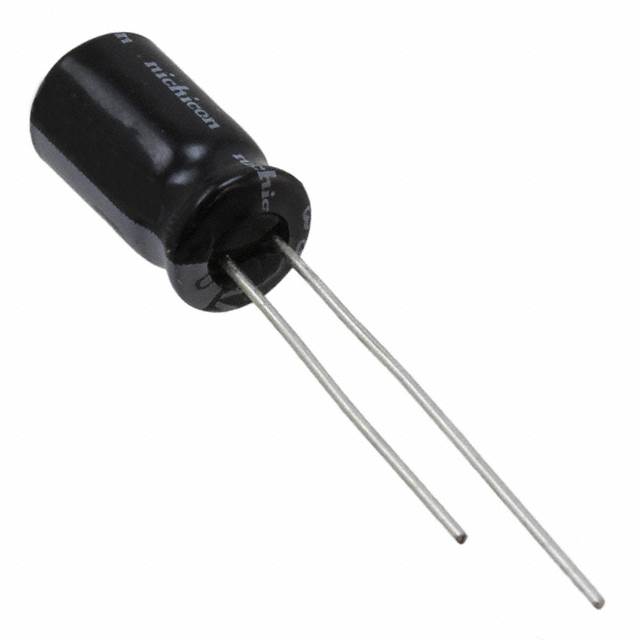

Nichicon UVY2G010MED	-40 C	105 ░C	Can Radial	0.098 in	2.5 mm	400 V	Through Hole	14 mA	General Purpose	20 %	Polar	1000 Hrs	1 µF	0.248 "	6.3 mm		0.492 in					12.5 mm
Nichicon UVY2G2R2MPD1TD	-40 C	105 ░C	Can Radial	0.138 in	3.5 mm	400 V	Through Hole	27 mA	General Purpose	20 %	Polar	1000 Hrs	2.2 µF	0.315 in	8 mm			31.05 mA	0.512 "	13 mm
Nichicon UVY2G680MHD	-40 C	105 ░C	Can Radial	0.295 in	7.5 mm	400 V	Through Hole	240 mA	General Purpose	20 %	Polar	2000 Hrs	68 µF	0.63 in	16 mm	1.28 in	32.5 mm	276 mA

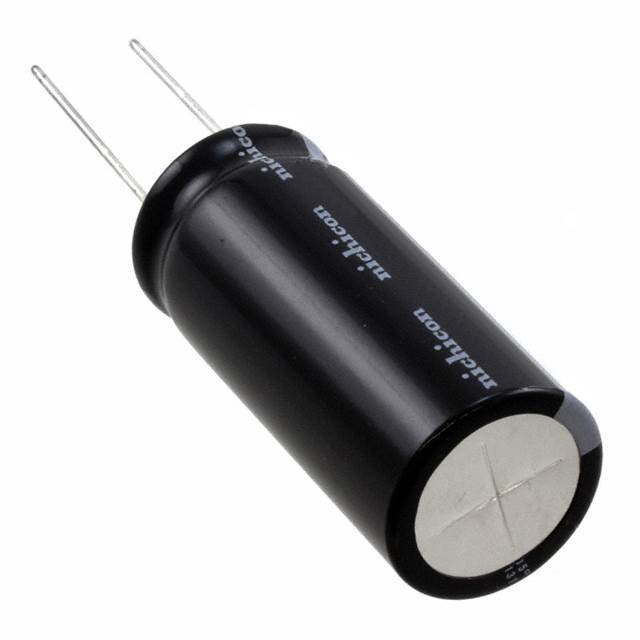

Nichicon UVY2G221MRD	-40 C	105 ░C	Can Radial	0.394 in	10 mm	400 V	Through Hole	460 mA	General Purpose	20 %	Polar	2000 Hrs	220 µF	0.866 "	22 mm	2.047 in	52 mm	529 mA
