MRF24WB0M Series
Manufacturer: Microchip Technology
Beta
⌘K
RF TXRX MOD WIFI TH SMD
| Part | Firmware Version | Frequency | RF Family/Standard | Power - Output | Sensitivity | Current - Receiving | Data Rate | Current - Transmitting (Min) | Current - Transmitting (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Protocol | Antenna Type | Serial Interfaces | Modulation | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

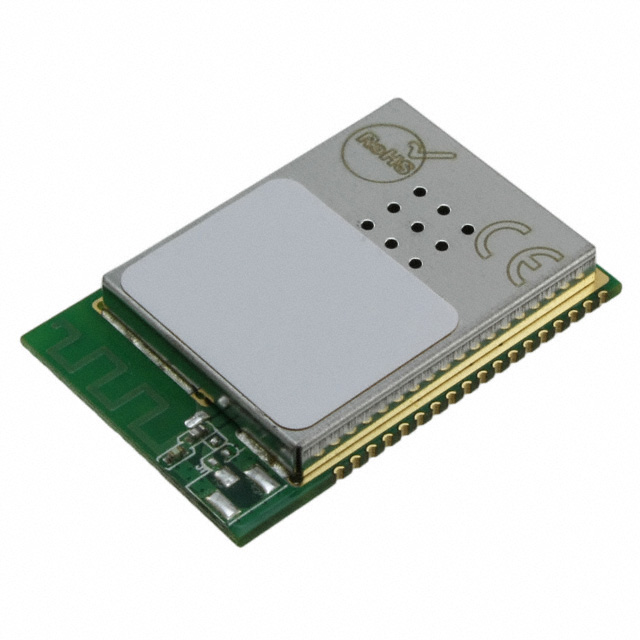

 Microchip Technology | A0C | 2.4 GHz | WiFi | 10 dBm | -91 dBm | 85 mA | 2 Mbps | 115 mA | 154 mA | 3.6 V | 2.7 V | 802.11b | Integrated Trace | JTAG SPI | DSSS | -40 °C | 85 °C | Module | Surface Mount |

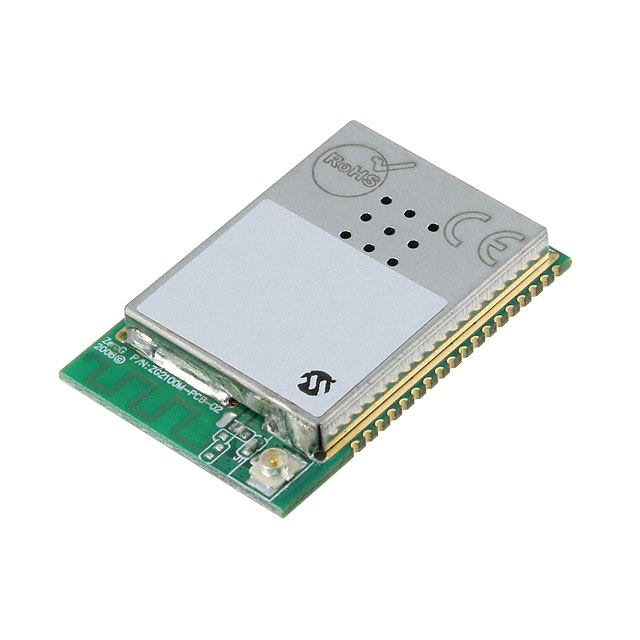

 Microchip Technology | B0C | 2.4 GHz | WiFi | 10 dBm | -91 dBm | 85 mA | 2 Mbps | 115 mA | 154 mA | 3.6 V | 2.7 V | 802.11b | Antenna Not Included U.FL | JTAG SPI | DSSS | -40 °C | 85 °C | Module | Surface Mount |
