APTDF400KK120G-Module Series

1200V/Dual common cathode/Si Diode modules

Catalog

1200V/Dual common cathode/Si Diode modules

Part	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Speed
Microchip Technology APTDF400AA100G	SP6	1000 V	Chassis Mount	LP4	1 Pair Common Anode	500 A	200 mA 500 ns	250 µA	2.7 V	Standard	290 ns
Microchip Technology APTDF400KK120G	SP6	1.2 kV	Chassis Mount	LP4	1 Pair Common Cathode	470 A	200 mA 500 ns	250 µA	3 V	Standard	385 ns

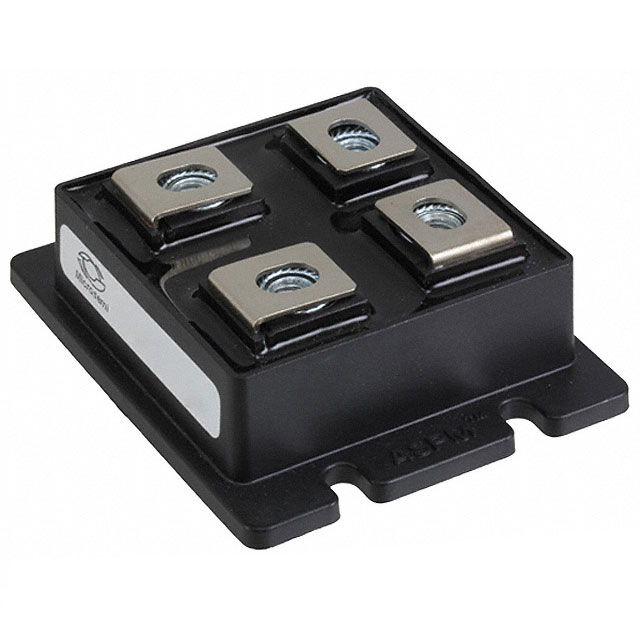

Microchip Technology APTDF400U120G	LP4	1.2 kV	Chassis Mount	LP4			200 mA 500 ns	2.5 mA	2.5 V	Standard	110 ns	450 A
Microchip Technology APTDF400AA20G	SP6	200 V	Chassis Mount	LP4	1 Pair Common Anode	500 A	200 mA 500 ns	750 µA	1.1 V	Standard	60 ns
Microchip Technology APTDF400AA60G	SP6	600 V	Chassis Mount	LP4	1 Pair Common Anode	500 A	200 mA 500 ns	750 µA		Standard	160 ns
Microchip Technology APTDF400AK60G	SP6	600 V	Chassis Mount	LP4	1 Pair Series Connection	500 A	200 mA 500 ns	750 µA		Standard	160 ns

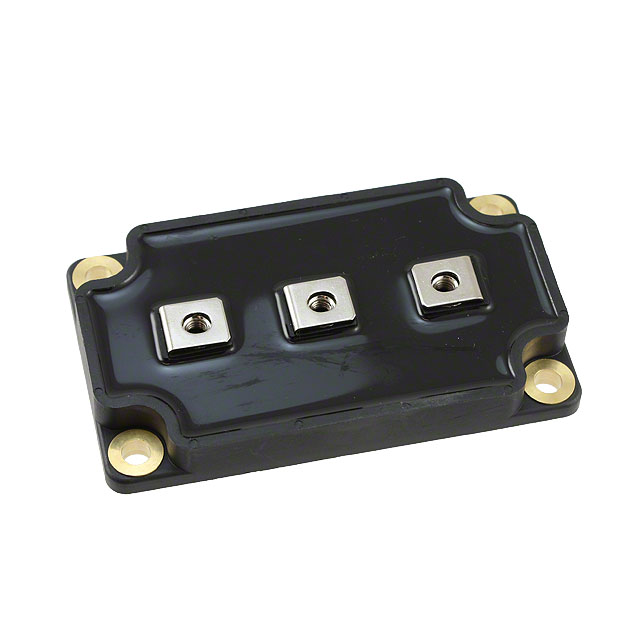

Microchip Technology APTDF400KK170G	SP6	1700 V	Chassis Mount	LP4	1 Pair Common Cathode	480 A	200 mA	750 µA	2.5 V	Standard	572 ns		Standard Recovery >500ns
Microchip Technology APTDF400AK170G	SP6	1700 V	Chassis Mount	LP4	1 Pair Series Connection	480 A	200 mA	750 µA	2.5 V	Standard	572 ns		Standard Recovery >500ns

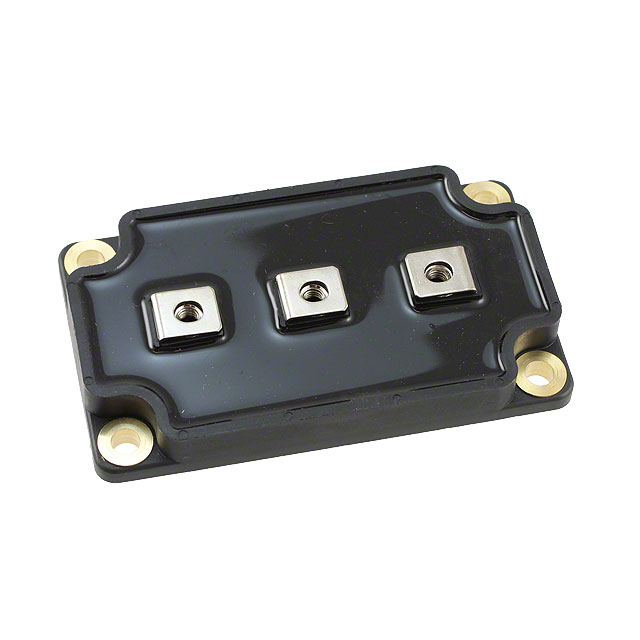

Microchip Technology APTDF400KK20G	SP6	200 V	Chassis Mount	LP4	1 Pair Common Cathode	500 A	200 mA 500 ns	750 µA	1.1 V	Standard	60 ns
Microchip Technology APTDF400AA120G	SP6	1.2 kV	Chassis Mount	LP4	1 Pair Common Anode	470 A	200 mA 500 ns	250 µA	3 V	Standard	385 ns

Catalog

1200V/Dual common cathode/Si Diode modules

Key Features

• + Configuration: Dual common cathode

• + VRRM (V): 1200

• + VF (V): 2.4

• + Current (A) Tc=80C: 400

• + Silicon type: FRED diode

• + Package: SP6C

Description

* FRED Si diode * Ultra fast recovery times * Soft recovery characteristics * High blocking voltage * High current * Low leakage current * Low stray inductance * Outstanding performance at high frequency operation * Low losses * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * RoHS Compliant
