IRF135 Series
Manufacturer: INFINEON
Beta
⌘K
STRONGIRFET™ N-CHANNEL POWER MOSFET ; TO-220 PACKAGE; 8.4 MOHM;
| Part | Package / Case | Vgs(th) (Max) @ Id | Vgs (Max) | Power Dissipation (Max) | Technology | FET Type | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Gate Charge (Qg) (Max) @ Vgs [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Rds On (Max) @ Id, Vgs | Supplier Device Package | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | TO-220-3 | 4 V | 20 V | 441 W | MOSFET (Metal Oxide) | N-Channel | Through Hole | 9700 pF | 135 V | 270 nC | 175 °C | -55 °C | 8.4 mOhm | PG-TO220-3 | 10 V | 129 A |

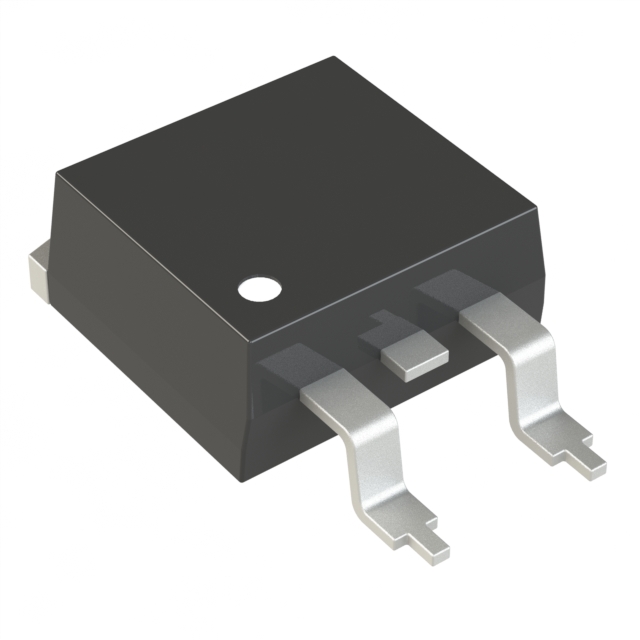

 INFINEON | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 4 V | 20 V | 441 W | MOSFET (Metal Oxide) | N-Channel | Surface Mount | 9700 pF | 135 V | 270 nC | 175 °C | -55 °C | 8.4 mOhm | PG-TO263-3-2 | 10 V | 129 A |
