UVY1H Series

Manufacturer: Nichicon

Catalog

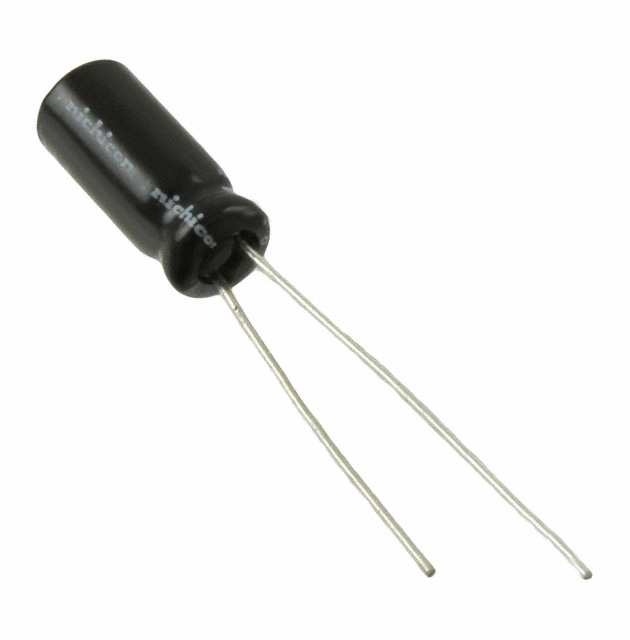

CAP ALUM 1UF 20% 50V RADIAL TH

Part	Package / Case	Ripple Current @ Low Frequency	Polarization	Lifetime @ Temp.	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Mounting Type	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UVY1H010MDD	Can Radial	13 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	26 mA	11 mm	0.433 in	1 µF	Through Hole	General Purpose
Nichicon UVY1H3R3MDD1TD	Can Radial	25 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	50 mA			3.3 µF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H331MPD1TD	Can Radial	410 mA	Polar	2000 Hrs	20 %	5 mm	0.197 "	-55 C	105 ░C	50 VDC	0.394 in	10 mm	615 mA	0.689 in		330 µF	Through Hole	General Purpose			17.5 mm
Nichicon UVY1H100MDD	Can Radial	46 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	92 mA			10 µF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H220MDD1TD	Can Radial	68 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	136 mA			22 µF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H220MDD	Can Radial	68 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	136 mA			22 µF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H0R1MDD1TA	Can Radial	1.3 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	2.6 mA			100000 pF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H331MPD	Can Radial	410 mA	Polar	2000 Hrs	20 %	5 mm	0.197 "	-55 C	105 ░C	50 VDC	0.394 in	10 mm	615 mA	0.689 in		330 µF	Through Hole	General Purpose			17.5 mm
Nichicon UVY1H4R7MDD	Can Radial	30 mA	Polar	1000 Hrs	20 %	2 mm	0.079 in	-55 C	105 ░C	50 VDC	0.197 in	5 mm	60 mA			4.7 µF	Through Hole	General Purpose	0.492 in	12.5 mm
Nichicon UVY1H470MED	Can Radial	115 mA	Polar	1000 Hrs	20 %	2.5 mm	0.098 in	-55 C	105 ░C	50 VDC	0.248 "	6.3 mm	230 mA			47 µF	Through Hole	General Purpose	0.492 in	12.5 mm
