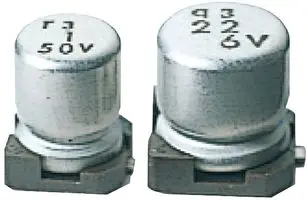

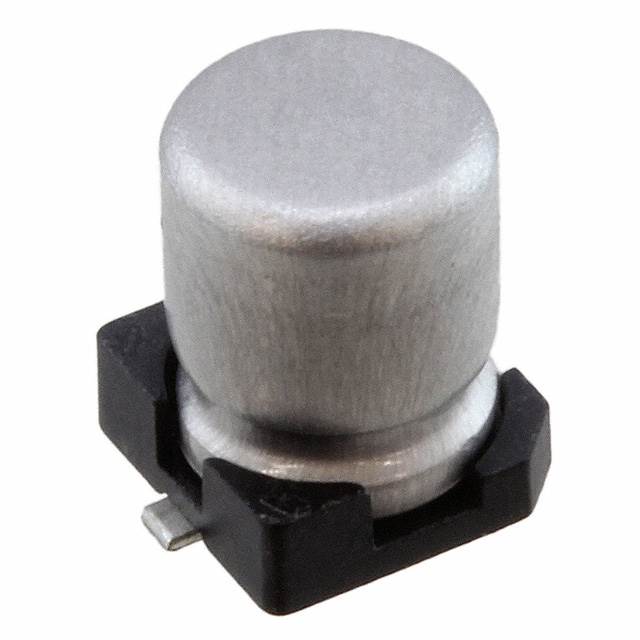

UWP Series
Manufacturer: Nichicon
Beta
⌘K
SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 4.7 ΜF, 16 V, 2000 HOURS @ 85°C
| Part | Voltage - Rated | Package / Case | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Ripple Current @ High Frequency | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Lifetime @ Temp. | Ripple Current @ Low Frequency | Ratings | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 16 V | Radial Can - SMD | 4.3 mm | 0.169 " | 0.169 in | 4.3 mm | 18 mA | General Purpose | 85 °C | -40 C | 4 mm | 0.157 in | 4.7 µF | 1000 Hrs | 12 mA | AEC-Q200 | Surface Mount | 0.217 " | 5.5 mm | 20 % | Bi-Polar |
 Nichicon | 10 V | Radial Can - SMD | 4.3 mm | 0.169 " | 0.169 in | 4.3 mm | 25.5 mA | General Purpose | 85 °C | -40 C | 4 mm | 0.157 in | 10 µF | 1000 Hrs | 17 mA | AEC-Q200 | Surface Mount | 0.217 " | 5.5 mm | 20 % | Bi-Polar |
