LGJ Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 180UF 250 VOLTS 20%

Part	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension	Size / Dimension [diameter]	Mounting Type	Package / Case	Polarization	Ripple Current @ Low Frequency	Applications	Tolerance	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]

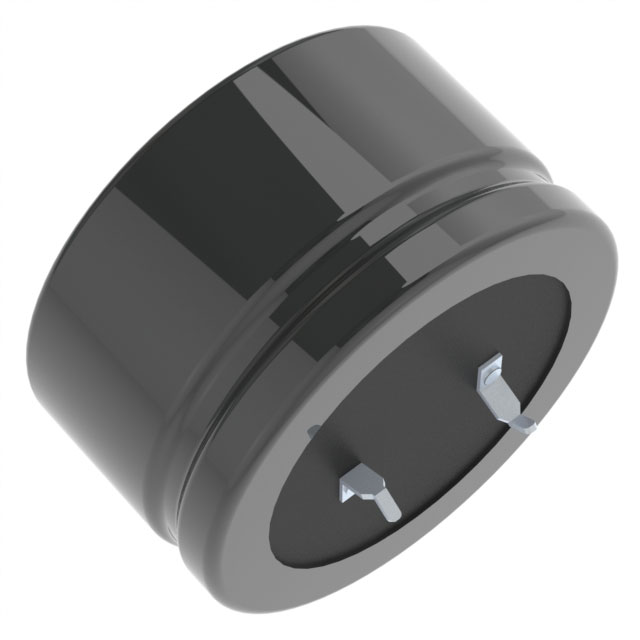

Nichicon LGJ2E181MELB15	1.125 A	0.394 in	10 mm	180 µF	30 mm	1.181 "	Through Hole	Radial Can - Snap-In	Polar	750 mA	General Purpose	20 %	3000 Hrs	250 V	-40 C	105 ░C	0.669 "	17 mm
Nichicon LGJ2E221MELC15	1.35 A	0.394 in	10 mm	220 µF		1.378 "	Through Hole	Radial Can - Snap-In	Polar	900 mA	General Purpose	20 %	3000 Hrs	250 V	-40 C	105 ░C	0.669 "	17 mm	35 mm
Nichicon LGJ2G680MELB15		0.394 in	10 mm	68 µF	30 mm	1.181 "	Through Hole	Radial Can - Snap-In	Polar	450 mA	General Purpose	20 %	2000 Hrs	400 V	-25 °C	105 ░C	0.669 "	17 mm

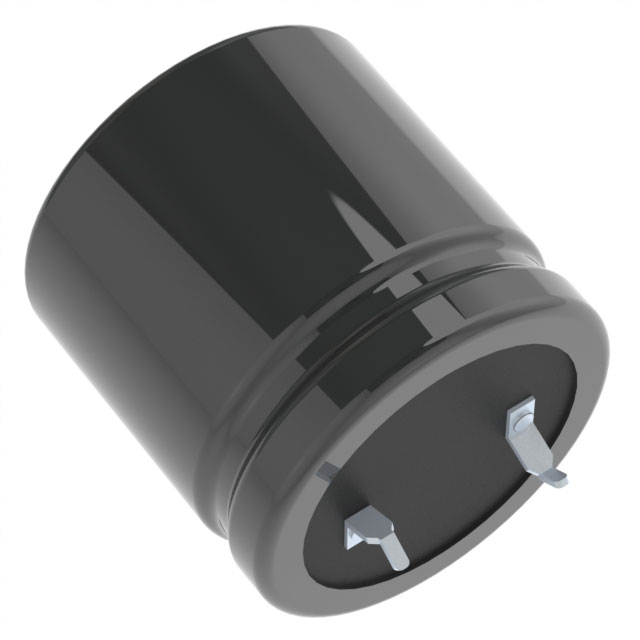

Nichicon LGJ2G560MELY20	786.5 mA	0.394 in	10 mm	56 µF		0.787 "	Through Hole	Radial Can - Snap-In	Polar		General Purpose	20 %	3000 Hrs	400 V	-25 °C	105 ░C			20 mm	0.866 in	22 mm
Nichicon LGJ2G121MELB20	1.2298 A	0.394 in	10 mm	120 µF	30 mm	1.181 "	Through Hole	Radial Can - Snap-In	Polar	860 mA	General Purpose	20 %	3000 Hrs	400 V	-25 °C	105 ░C				0.866 in	22 mm
Nichicon LGJ2D271MELB15	1.5 A	0.394 in	10 mm	270 µF	30 mm	1.181 "	Through Hole	Radial Can - Snap-In	Polar	1 A	General Purpose	20 %	2000 Hrs	200 VDC	-40 C	105 ░C	0.669 "	17 mm
