UHE Series

Manufacturer: Nichicon

Catalog

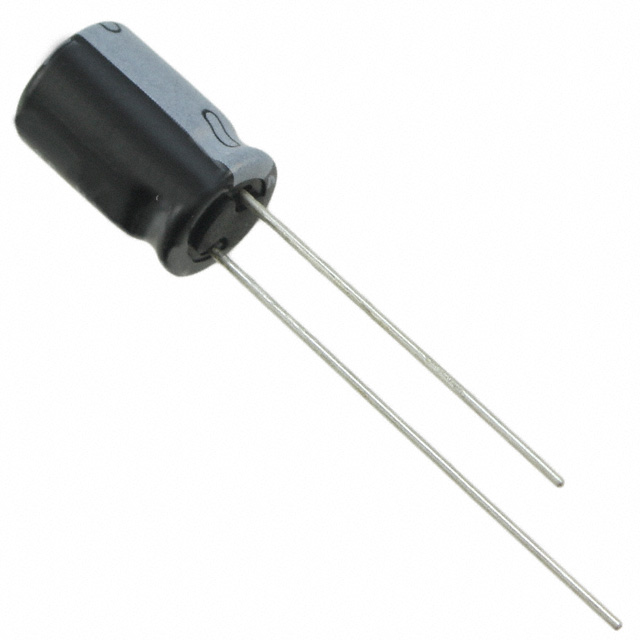

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 220UF 35 VOLTS 20%

Part	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Polarization	Lifetime @ Temp.	Applications	Package / Case	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UHE1V221MPD1TA	220 µF	0.315 in	8 mm	0.65 in	16.5 mm	0.138 in	3.5 mm	Through Hole	-40 C	105 ░C	588 mA	35 V	840 mA	20 %	Polar	7000 Hrs	General Purpose	Can Radial	87 mOhms
Nichicon UHE2A680MPD1TD	68 µF	0.394 in	10 mm		0.689 in	0.197 "	5 mm	Through Hole	-40 C	105 ░C	280 mA	100 V	400 mA	20 %	Polar	7000 Hrs	General Purpose	Can Radial	310 mOhms	17.5 mm
Nichicon UHE1A102MPD1TA	1000 µF	0.315 in	8 mm			0.138 in	3.5 mm	Through Hole	-40 C	105 ░C	787.5 mA	10 V	1.05 A	20 %	Polar	6000 Hrs	General Purpose	Can Radial	69 mOhms		0.866 in	22 mm
Nichicon UHE1V182MHD6TN	1800 µF	0.63 in	16 mm			0.295 in	7.5 mm	Through Hole	-40 C	105 ░C	2.344 A	35 V	2.93 A	20 %	Polar	10000 Hrs	General Purpose	Can Radial	21 mOhms				1.063 in	27 mm
Nichicon UHE1E821MPD1TD	820 µF	0.394 in	10 mm			0.197 "	5 mm	Through Hole	-40 C	105 ░C	1.238 A	25 VDC	1.65 A	20 %	Polar	7000 Hrs	General Purpose	Can Radial	42 mOhms				1.063 in	27 mm
Nichicon UHE0J152MPD	1.5 mF	0.394 in	10 mm			0.197 "	5 mm	Through Hole	-40 C	105 ░C	1.12 A	6.3 VDC	1.4 A	20 %	Polar	6000 Hrs	General Purpose	Can Radial	46 mOhms					0.787 in	20 mm
Nichicon UHE1C471MPD	470 µF	0.315 in	8 mm	0.591 "	15 mm	0.138 in	3.5 mm	Through Hole	-40 C	105 ░C	630 mA	16 V	840 mA	20 %	Polar	7000 Hrs	General Purpose	Can Radial	87 mOhms
Nichicon UHE1H121MPD1TA	120 µF	0.315 in	8 mm	0.65 in	16.5 mm	0.138 in	3.5 mm	Through Hole	-40 C	105 ░C	511 mA	50 VDC	730 mA	20 %	Polar	7000 Hrs	General Purpose	Can Radial	120 mOhms
Nichicon UHE1H561MHD	560 µF	0.492 in	12.5 mm			0.197 "	5 mm	Through Hole	-40 C	105 ░C	1.463 A	50 VDC	1.95 A	20 %	Polar	10000 Hrs	General Purpose	Can Radial	34 mOhms				0.984 in	25 mm
Nichicon UHE1E331MPD1TA	330 µF	0.315 in	8 mm	0.65 in	16.5 mm	0.138 in	3.5 mm	Through Hole	-40 C	105 ░C	588 mA	25 VDC	840 mA	20 %	Polar	7000 Hrs	General Purpose	Can Radial	87 mOhms
