RPS Series

Manufacturer: Nichicon

Catalog

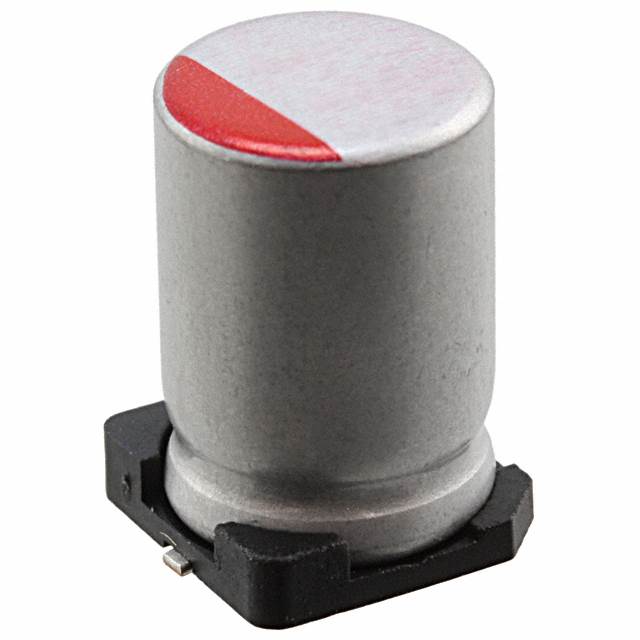

ALUMINUM ORGANIC POLYMER CAPACITORS 39UF 50 VOLTS 20%

Part	Package / Case	Tolerance	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Mounting Type	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Nichicon RPS1H390MCN1GS	Radial Can - SMD	20 %	50 VDC	8.3 mm	8.3 mm	0.327 in	0.327 in	2000 Hrs	230 mA	Surface Mount	39 µF	0.472 in	12 mm	26 mOhm	2.3 A	0.315 in	8 mm	General Purpose	-55 C	105 ░C	Polymer
Nichicon RPS0J821MCN1GS	Radial Can - SMD	20 %	6.3 VDC	10.3 mm	10.3 mm	0.406 "	0.406 in	2000 Hrs		Surface Mount	820 µF			12 mOhms	5.5 A	0.394 in	10 mm	General Purpose	-55 C	105 ░C	Polymer	12.4 mm	0.488 in
Nichicon RPS1C221MCN1GS	Radial Can - SMD	20 %	16 V	8.3 mm	8.3 mm	0.327 in	0.327 in	2000 Hrs	370 mA	Surface Mount	220 µF			20 mOhms	3.7 A	0.315 in	8 mm	General Purpose	-55 C	105 ░C	Polymer		0.461 in	11.7 mm
