A3C-16DA Series

Catalog

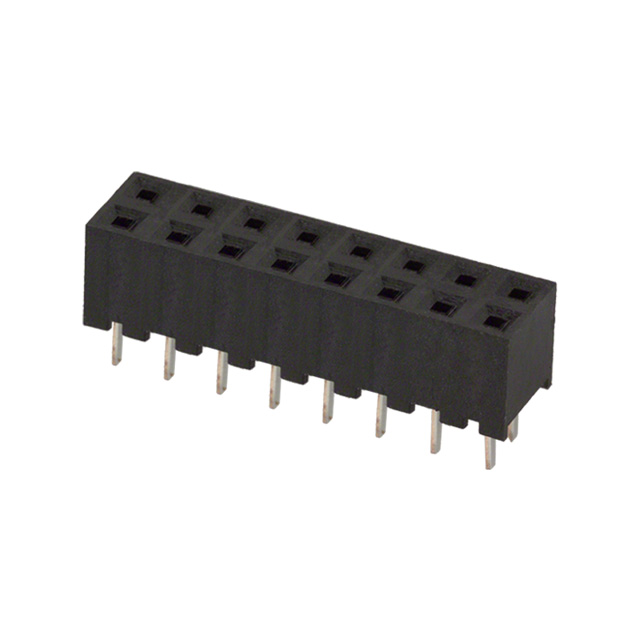

CONN RCPT 16POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Shape	Insulation Material	Contact Material	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Positions	Mated Stacking Heights	Material Flammability Rating	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Color	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post
Hirose Electric Co Ltd A3C-16DA-2DSA	39.4 çin	1 çm	General Purpose Telecommunications	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Female Socket	0.118 in	3 mm	2	Through Hole	8 µin	0.203 µm	Board to Board Cable	All	0.079 "	2 mm	16	5.1 mm 6 mm	UL94 V-0	Solder	2 mm	0.079 in	Tin	Black	Gold	200 VAC	-55 C	85 °C	Receptacle	Push-Pull	0.165 in	4.2 mm
Hirose Electric Co Ltd A3C-16DA-2DSA(71)	39.4 çin	1 çm	General Purpose Telecommunications	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Female Socket	0.118 in	3 mm	2	Through Hole	8 µin	0.203 µm	Board to Board Cable	All	0.079 "	2 mm	16	5.1 mm 6 mm	UL94 V-0	Solder	2 mm	0.079 in	Tin	Black	Gold	200 VAC	-55 C	85 °C	Receptacle	Push-Pull	0.165 in	4.2 mm
Hirose Electric Co Ltd A3C-16DA-2DSC(71)	39.4 çin	1 çm	General Purpose Telecommunications	Square	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Female Socket		0.079 in	2	Through Hole	8 µin	0.203 µm	Board to Board Cable	All	0.079 "	2 mm	16	5.1 mm 6 mm	UL94 V-0	Solder	2 mm	0.079 in	Tin	Black	Gold	200 VAC	-55 C	85 °C	Receptacle	Push-Pull	0.165 in	4.2 mm	2 mm
