C0563 Series
Manufacturer: Prysmian Group
Beta
⌘K

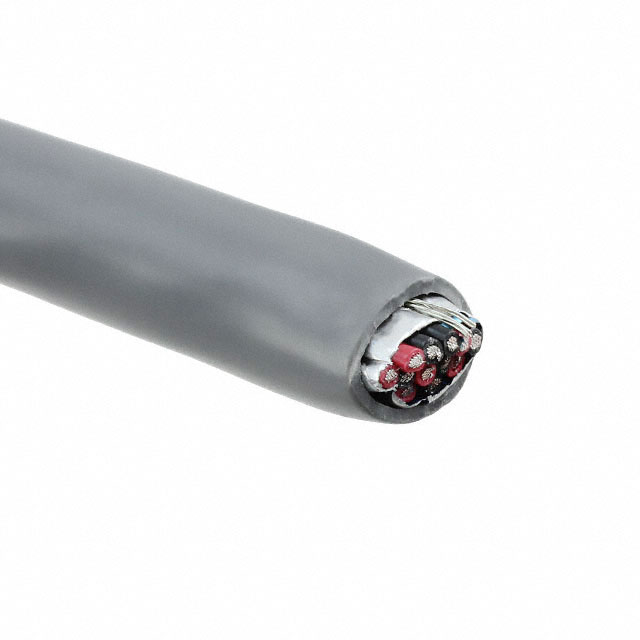

MULTI-PAIR 12COND 18AWG GRAY 50'
| Part | Number of Conductors | Jacket Color | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Usage | Length [x] | Length [x] | Jacket (Insulation) Material | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 12 | Gray | Drain Wire | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | ASTM B-33 | -20 ░C | 105 ░C | 18 AWG | Foil | 16 | 30 AWG | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Copper Annealed Tinned | 300 VDC | 0.519 " | 13.18 mm | Multi-Pair | Communication Control | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | ||
Prysmian Group | 12 | Gray | Drain Wire | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | ASTM B-33 | -20 ░C | 105 ░C | 18 AWG | Foil | 16 | 30 AWG | 304.8 m | 1000 ft | Copper Annealed Tinned | 300 VDC | 0.519 " | 13.18 mm | Multi-Pair | Communication Control | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Copper Flexfoil® Tinned | 100 % |
