CD-02-05 Series

Catalog

THERMAL PAD, ULTIMIFLUX SERIES, 0.0762 MM, THICKNESS, 24.13 MM, LENGTH

Part	Shape	Material	Usage	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Outline [y]	Outline [x]	Shelf Life	Thickness	Thickness	Outline [diameter]
Wakefield Thermal Solutions CD-02-05-247	Rectangular	Phase Change Compound	TO-247	Polyimide	35 °C	95 °F	19.05 mm	24.13 mm	Indefinite	0.076 mm	0.003 "

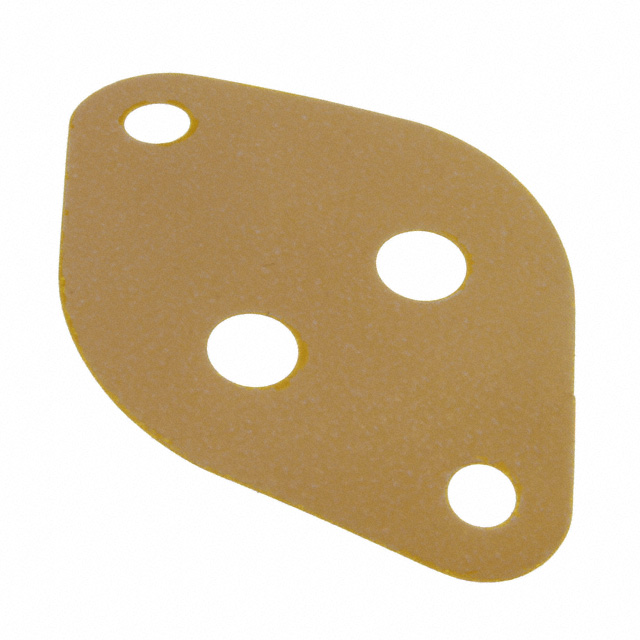

Wakefield Thermal Solutions CD-02-05-3-2	Rhombus	Phase Change Compound	TO-3	Polyimide			26.67 mm	39.37 mm		0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-220-N	Rectangular	Phase Change Compound	TO-220	Polyimide	35 °C	95 °F	12.7 mm	17.78 mm	Indefinite	0.076 mm	0.003 "

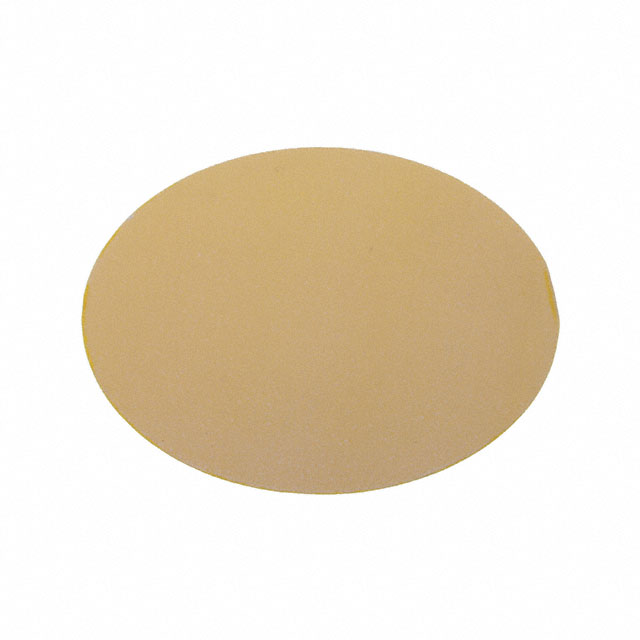

Wakefield Thermal Solutions CD-02-05-LED-2	Round	Phase Change Compound	LED	Polyimide	35 °C	95 °F			Indefinite	0.076 mm	0.003 "	50.8 mm

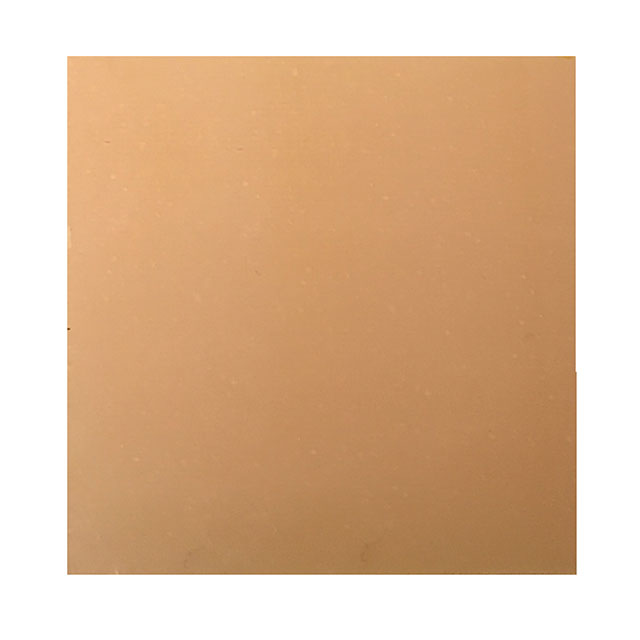

Wakefield Thermal Solutions CD-02-05-C-20	Square	Phase Change Compound		Polyimide			19.51 mm	19.51 mm		0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-247-3	Rectangular	Phase Change Compound	TO-247	Polyimide			24.13 mm	57.15 mm		0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-220-N	Rectangular	Phase Change Compound	TO-220	Polyimide			12.7 mm	17.78 mm		0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-C-34	Square	Phase Change Compound		Polyimide	35 °C	95 °F	33.5 mm	33.5 mm	Indefinite	0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-3-4	Rhombus	Phase Change Compound	TO-3	Polyimide			26.67 mm	39.37 mm		0.076 mm	0.003 "
Wakefield Thermal Solutions CD-02-05-C-46	Square	Phase Change Compound		Polyimide			46 mm	46 mm		0.076 mm	0.003 "
