C0723 Series
Manufacturer: Prysmian Group
Beta
⌘K

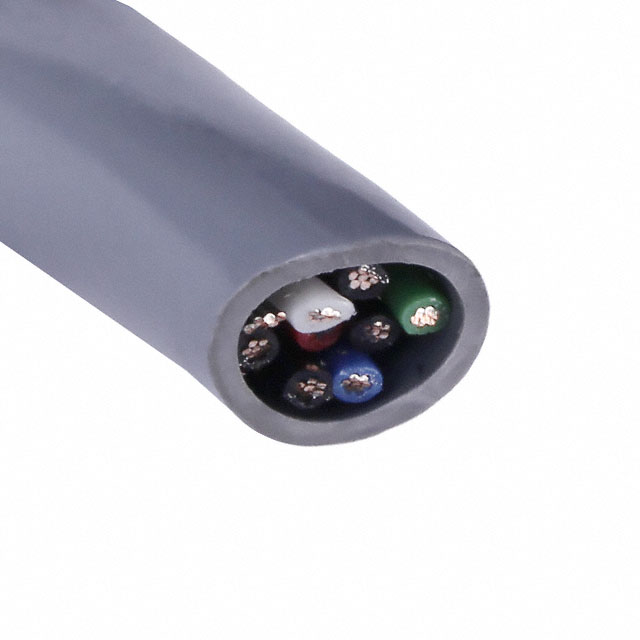

MULTI-PAIR 8COND 22AWG GRAY 500'
| Part | Shield Coverage | Shield Material | Wire Gauge | Shield Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Features | Cable Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Usage | Ratings | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 % | Flexfoil® | 22 AWG | Foil | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Copper Annealed Tinned | Drain Wire | Multi-Pair | 8 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 6.83 mm | 0.269 " | Gray | Computer | ASTM B-33 | 152.4 m | 500 ft | ||
 Prysmian Group | 100 % | Flexfoil® | 22 AWG | Foil | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Copper Annealed Tinned | Drain Wire | Multi-Pair | 8 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 6.83 mm | 0.269 " | Gray | Computer | ASTM B-33 | 15.24 m 304.8 m | 50 ft 1000 ft | 100 ft | 30.5 m |
Prysmian Group | 22 AWG | Foil | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Copper Annealed Tinned | Drain Wire | Multi-Pair | 8 | 0.813 mm | 0.032 in | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 6.83 mm | 0.269 " | Gray | Computer | ASTM B-33 | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m |
