DF63 Series

Headers & Wire Housings

Catalog

Headers & Wire Housings

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Connector Type	Features	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Material Flammability Rating	Voltage Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Mounting Type	Insulation Material	Number of Positions	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Material	Contact Type	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish	Contact Termination	Type	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Color	Pitch [x]	Pitch [x]	Note	Contact Length - Post	Contact Length - Post
Hirose Electric USA, Inc. DF63-4P-3.96DSA	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	4	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1
Hirose Electric USA, Inc. DF63-3P-7.92DSA(01)	Latch Holder	0.312 in	7.92 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF63-5P-3.96DSA(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF63-1618SCFA																																	Gold	Crimp	Stamped	16 AWG	18 AWG	Socket
Hirose Electric USA, Inc. DF63-2P-3.96DSA(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	2	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin

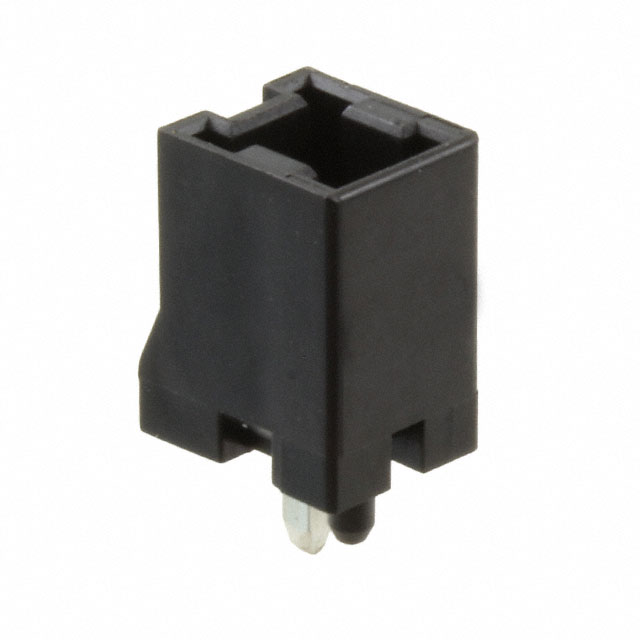

Hirose Electric USA, Inc. DF63-1P-3.96DSA	Latch Holder			Board to Cable/Wire	Header	Board Guide	All	Solder	10 mm	0.394 "	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	1	Varies by Wire Gauge	0.15 in	3.81 mm	Black	Brass	Male Pin	Tin	1
Hirose Electric USA, Inc. DF63-3EP-3.96C	Latch Holder				Plug									105 ░C	-55 °C		Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)							Male Pin		1							Crimp					Black	0.156 in	3.96 mm	Contacts Not Included
Hirose Electric USA, Inc. DF63-3P-7.92DS	Latch Holder	0.312 in	7.92 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	9 mm	0.354 in	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge			Black	Brass	Male Pin	Tin	1																3.5 mm	0.138 in
Hirose Electric USA, Inc. DF63-5P-3.96DS(01)	Latch Holder	0.156 in	3.96 mm	Board to Cable/Wire	Header	Board Guide	All	Solder	9 mm	0.354 in	UL94 V-0	600 VAC	Square	105 ░C	-55 °C	Shrouded - 4 Wall	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled		Varies by Wire Gauge			Black	Brass	Male Pin	Tin	1	Gold	1 çm	39.4 çin	0.203 Ám	8 Áin											3.5 mm	0.138 in
Hirose Electric USA, Inc. DF63-2022SC																																	Tin	Crimp	Stamped	20 AWG	22 AWG	Socket
