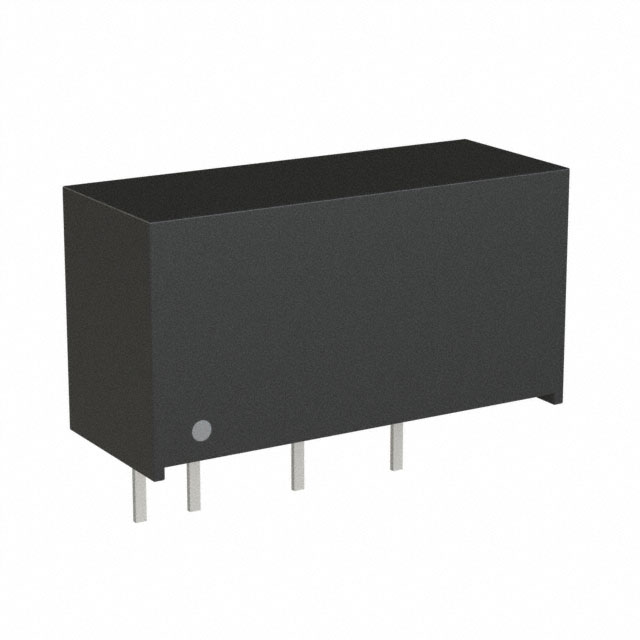

TRA 3 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Mounting Type	Features	Package / Case	Applications	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)

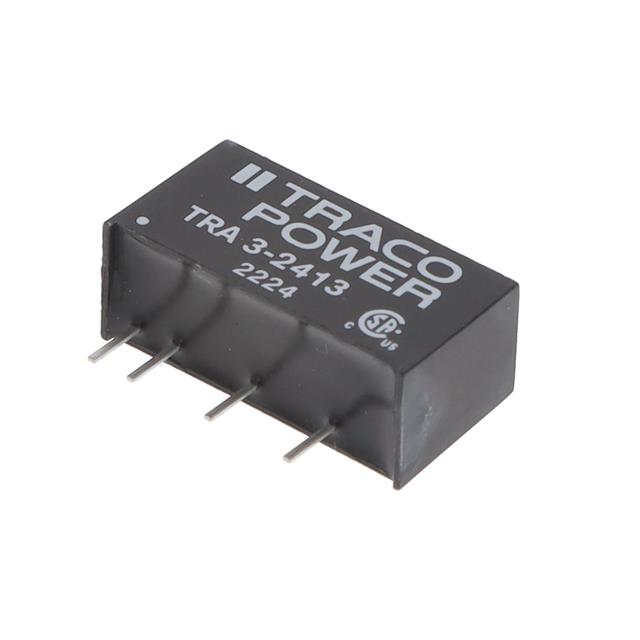

Traco Power TRA 3-2413	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	26.4 V	Isolated Module	200 mA	85 %	15 V	21.6 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W
Traco Power TRA 3-2412	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	26.4 V	Isolated Module	250 mA	85.5 %	12 V	21.6 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W

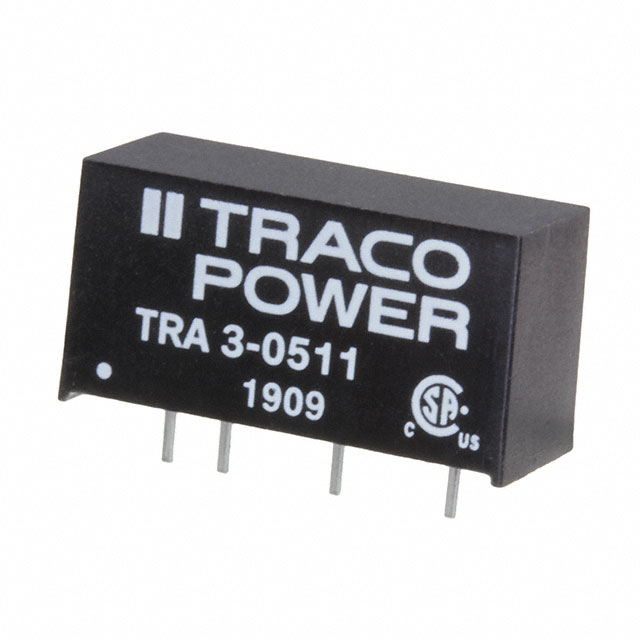

Traco Power TRA 3-0511	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	5.5 V	Isolated Module	600 mA	83 %	5 V	4.5 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W
Traco Power TRA 3-1213	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	13.2 V	Isolated Module	200 mA	89 %	15 V	10.8 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W
Traco Power TRA 3-0513	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	5.5 V	Isolated Module	200 mA	87.5 %	15 V	4.5 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W

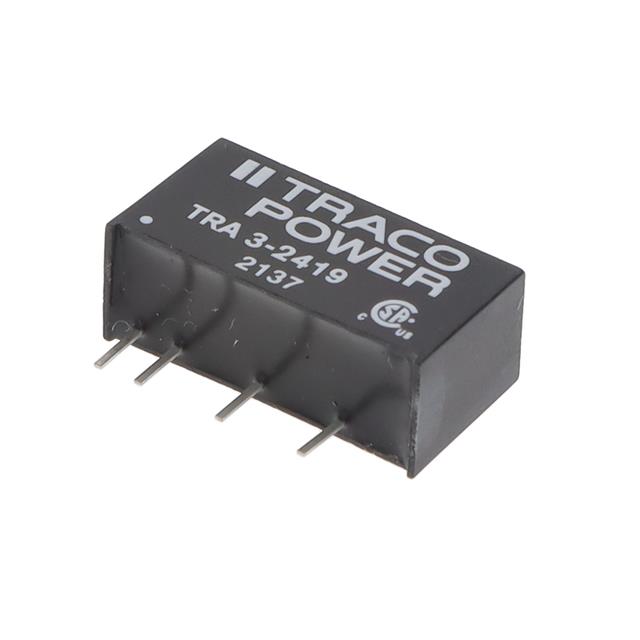

Traco Power TRA 3-2419	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	26.4 V	Isolated Module	333 mA	85 %	9 V	21.6 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W

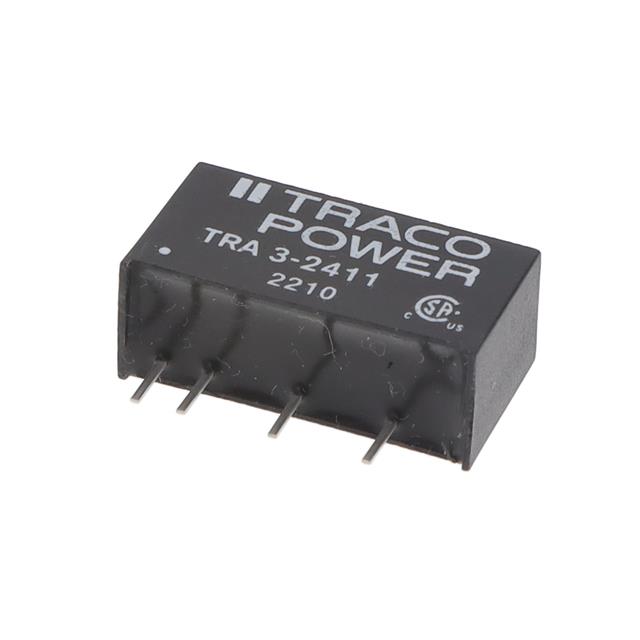

Traco Power TRA 3-2411	Through Hole	SCP	6-SIP Module 4 Leads	ITE (Commercial)	26.4 V	Isolated Module	600 mA		5 V	21.6 V	1000 V	19.5 mm	0.4 "	0.3 "	10.2 mm	0.77 in	7.6 mm	1	95 °C	-40 °C	3 W
