E2024S Series
Manufacturer: Prysmian Group
Beta
⌘K

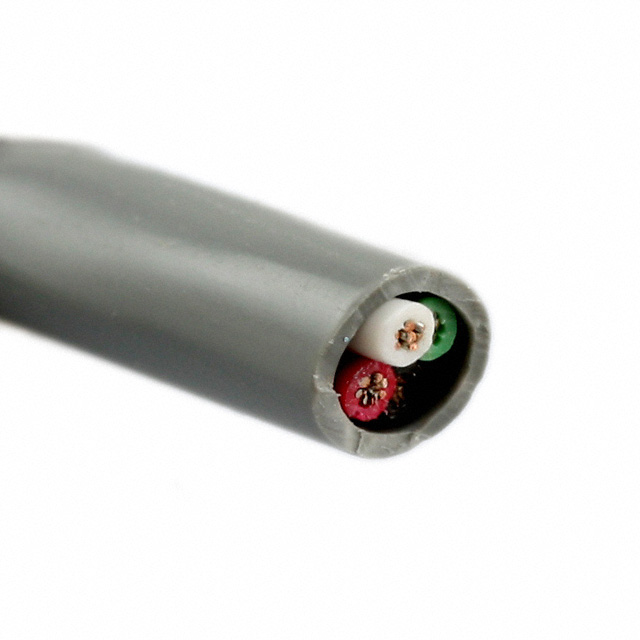

CABLE 4COND 20AWG GRAY SHLD 100'
| Part | Usage | Conductor Insulation | Voltage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Jacket Color | Wire Gauge | Features | Conductor Material | Length | Length | Length [x] | Length [x] | Shield Coverage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Alarm Security Sound | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 0.203 mm | 0.008 in | 4.34 mm | 0.171 " | Multi-Conductor | Foil | Gray | 20 AWG | Drain Wire Rip Cord | Copper Bare | 15.24 m 304.8 m | 50 ft 1000 ft | 25 ft 100 ft | 7.62 m 30.5 m | 100 % | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Flexfoil® |
 Prysmian Group | Alarm Security Sound | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 0.203 mm | 0.008 in | 4.34 mm | 0.171 " | Multi-Conductor | Foil | Gray | 20 AWG | Drain Wire Rip Cord | Copper Bare | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | ||||
Prysmian Group | Alarm Security Sound | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 0.203 mm | 0.008 in | 4.34 mm | 0.171 " | Multi-Conductor | Foil | Gray | 20 AWG | Drain Wire Rip Cord | Copper Bare | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | ||||
Prysmian Group | Alarm Security Sound | Poly-Vinyl Chloride (PVC) | 300 VDC | 4 | 0.203 mm | 0.008 in | 4.34 mm | 0.171 " | Multi-Conductor | Foil | Gray | 20 AWG | Drain Wire Rip Cord | Copper Bare | 304.8 m | 1000 ft | 100 ft | 30.5 m | 100 % | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Flexfoil® |
