RNL Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 16V 820UF 20% POLYMER LEADED

Part	Applications	Ripple Current @ High Frequency	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Type
Nichicon RNL1C821MDS6PX	General Purpose	7 A	2000 Hrs	Can Radial	17.5 mm	0.689 in	820 µF	-55 C	105 ░C	16 V	8 mOhms	700 mA	0.197 "	5 mm	0.315 in	8 mm	Through Hole	20 %	Polymer

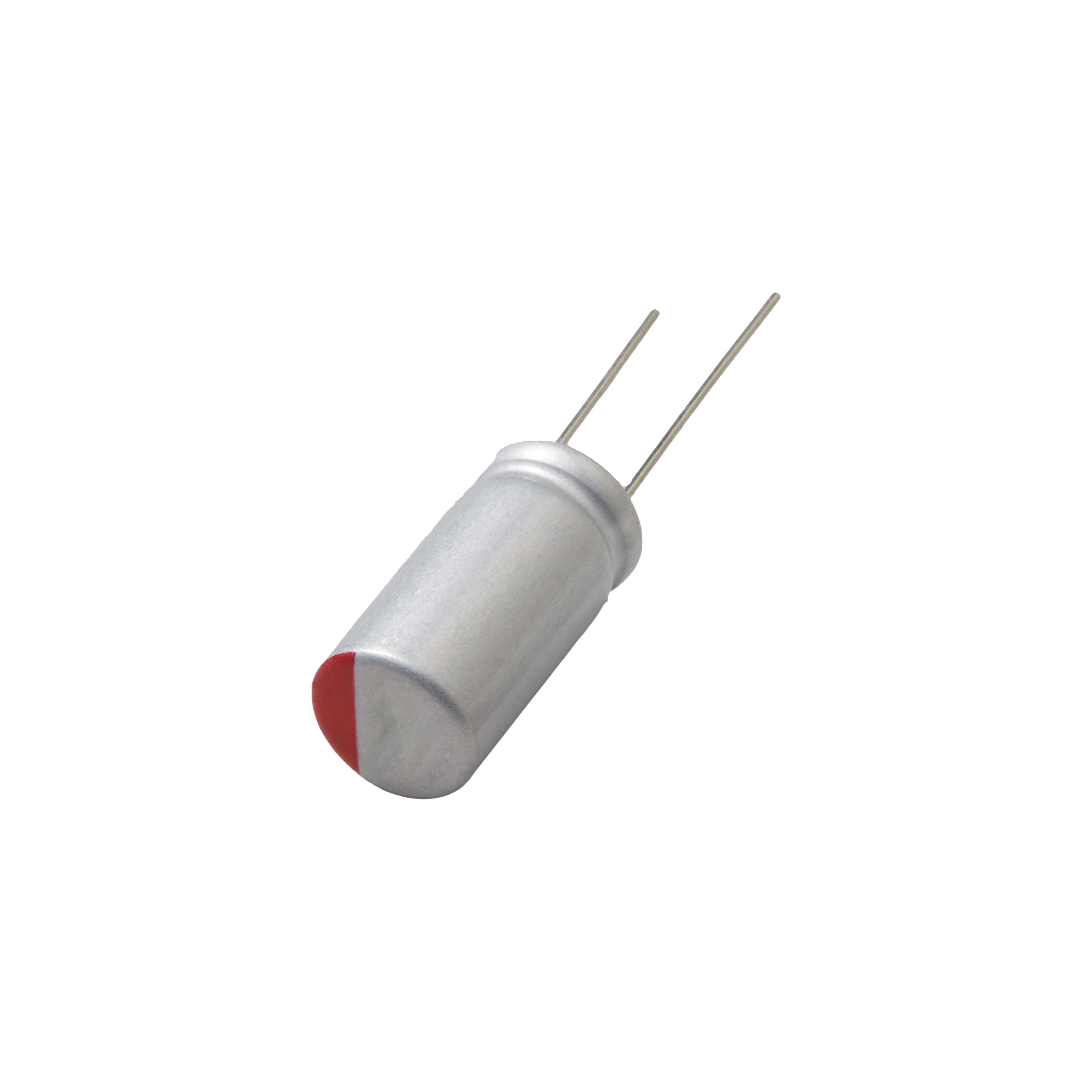

Nichicon RNL1C102MDS4	General Purpose	7700 mA	2000 Hrs	Can Radial	17.5 mm	0.689 in	1000 µF	-55 C	105 ░C	16 V	8 mOhms	770 mA	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	Polymer
Nichicon RNL1C102MDSASQ
Nichicon RNL1C102MDSASQKX
Nichicon RNL1C122MDSBSQ	General Purpose	7700 mA	5000 Hrs	Can Radial	17.5 mm	0.689 in	1.2 mF	-55 C	105 ░C	16 V	8 mOhms	770 mA	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	Polymer
Nichicon RNL1E561MDS4	General Purpose	5.8 A	2000 Hrs	Can Radial	17.5 mm	0.689 in	560 µF	-55 C	105 ░C	25 VDC	10 mOhm	580 mA	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	Polymer
Nichicon RNL1C681MDS1KX	General Purpose	7 A	2000 Hrs	Can Radial	17.5 mm	0.689 in	680 µF	-55 C	105 ░C	16 V	8 mOhms	700 mA	0.138 in	3.5 mm	0.315 in	8 mm	Through Hole	20 %	Polymer
Nichicon RNL1C152MDSBSQ	General Purpose	7700 mA	5000 Hrs	Can Radial	17.5 mm	0.689 in	1.5 mF	-55 C	105 ░C	16 V	8 mOhms	770 mA	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	Polymer
