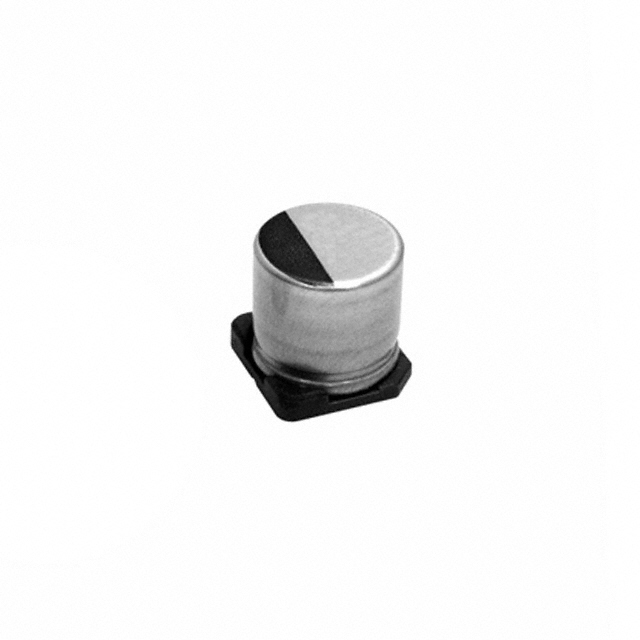

PCF Series

Manufacturer: Nichicon

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 220 ΜF, 2.5 V, RADIAL CAN - SMD, 0.02 OHM

Part	Applications	Lifetime @ Temp.	Voltage - Rated	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ High Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon PCF0E221MCL1GS	General Purpose	2000 Hrs	2.5 V	AEC-Q200	6 mm	0.236 "	Polymer	0.248 "	6.3 mm	220 µF	20 mOhms	Surface Mount	2.8 A	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	20 %	-55 C	105 ░C
Nichicon PCF1A470MCL6GS	General Purpose	2000 Hrs	10 V	AEC-Q200	6 mm	0.236 "	Polymer	0.197 in	5 mm	47 µF	26 mOhm	Surface Mount	2.6 A		0.209 in 5.3 mm	0.209 in 5.3 mm		Radial Can - SMD	20 %	-55 C	105 ░C
Nichicon PCF1A471MCL1GS	General Purpose	2000 Hrs	10 V	AEC-Q200		0.394 in	Polymer	0.394 in	10 mm	470 µF	16 mOhm	Surface Mount	4.6 A	0.406 in	10.3 mm	10.3 mm	0.406 "	Radial Can - SMD	20 %	-55 C	105 ░C	10 mm
Nichicon PCF1D151MCL1GS	General Purpose	2000 Hrs	20 V	AEC-Q200			Polymer	0.394 in	10 mm	150 µF	20 mOhms	Surface Mount	4.32 A	0.406 in	10.3 mm	10.3 mm	0.406 "	Radial Can - SMD	20 %	-55 C	105 ░C		0.504 "	12.8 mm
Nichicon PCF0E152MCL9GS	General Purpose	2000 Hrs	2.5 V	AEC-Q200		0.5 in	Polymer	0.394 in	10 mm	1.5 mF	12 mOhms	Surface Mount	5.44 A	0.406 in	10.3 mm	10.3 mm	0.406 "	Radial Can - SMD	20 %	-55 C	105 ░C	12.7 mm
Nichicon PCF0J820MCL1GS	General Purpose	2000 Hrs	6.3 VDC	AEC-Q200	6 mm	0.236 "	Polymer	0.248 "	6.3 mm	0.082 mF	23 mOhm	Surface Mount	2.6 A	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	20 %	-55 C	105 ░C
Nichicon PCF0J101MCL4GB	General Purpose	2000 Hrs	6.3 VDC	AEC-Q200		0.217 "	Polymer	0.248 "	6.3 mm	100 µF	23 mOhm	Surface Mount	2.8 A	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	20 %	-55 C	105 ░C	5.5 mm
Nichicon PCF1E560MCL1GS	General Purpose	2000 Hrs	25 VDC	AEC-Q200		0.5 in	Polymer	0.394 in	10 mm	56 µF	28 mOhm	Surface Mount	3.8 A	0.406 in	10.3 mm	10.3 mm	0.406 "	Radial Can - SMD	20 %	-55 C	105 ░C	12.7 mm
Nichicon PCF0G151MCL4GB	General Purpose	2000 Hrs	4 V	AEC-Q200		0.217 "	Polymer	0.248 "	6.3 mm	150 µF	22 mOhms	Surface Mount	2.8 A	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	20 %	-55 C	105 ░C	5.5 mm
Nichicon PCF0E821MCL1GS	General Purpose	2000 Hrs	2.5 V	AEC-Q200		0.315 in	Polymer	0.394 in	10 mm	820 µF	17 mOhm	Surface Mount	4.4 A	0.406 in	10.3 mm	10.3 mm	0.406 "	Radial Can - SMD	20 %	-55 C	105 ░C	8 mm
