CMX Series

Catalog

COMMON MODE CHOKES / FILTERS CANCHOKEIND,1CK 1812,SM

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage Rating - AC	Inductance @ Frequency	Filter Type	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Current Rating (Max) [Max]	Package / Case	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max)
Laird Technologies EMI CMX1616Z701B-10	Through Hole	40 mm	1.575 in	1.575 "	40 mm	250 V	704 µH	Power Line	2.3 mOhm	0.65 in	16.5 mm	33 A	4 PC Pin Horizontal	2	125 °C	-40 C

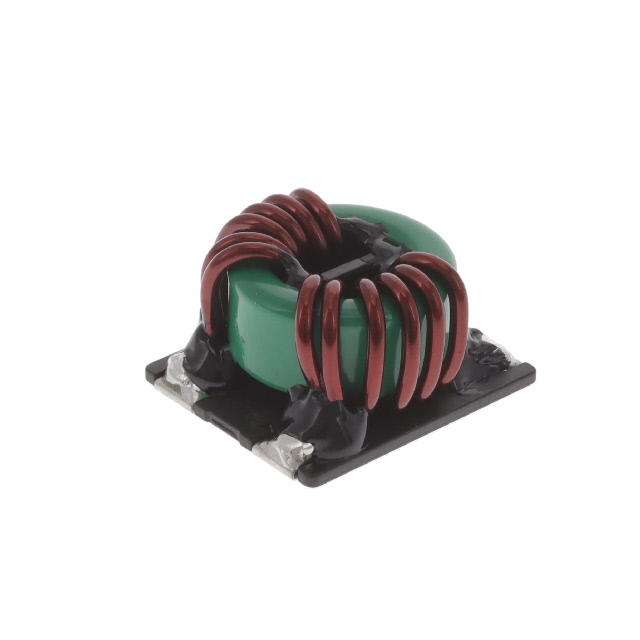

Laird Technologies EMI CMX1211Z680B-10	Surface Mount	1.24 in 31.5 mm			0.984 in 25 mm	250 V	68 µH 100 kHz	Power Line	0.56 mOhm	0.748 in		50 A	Horizontal 4 PC Pad	2	125 °C	-40 C	19 mm
Laird Technologies EMI CMX1211W182B-10	Surface Mount	1.24 in 31.5 mm			0.984 in 25 mm	250 V	100 kHz 1800 µH	Power Line	14 mOhm	0.748 in		9 A	Horizontal 4 PC Pad	2	125 °C	-40 C	19 mm
