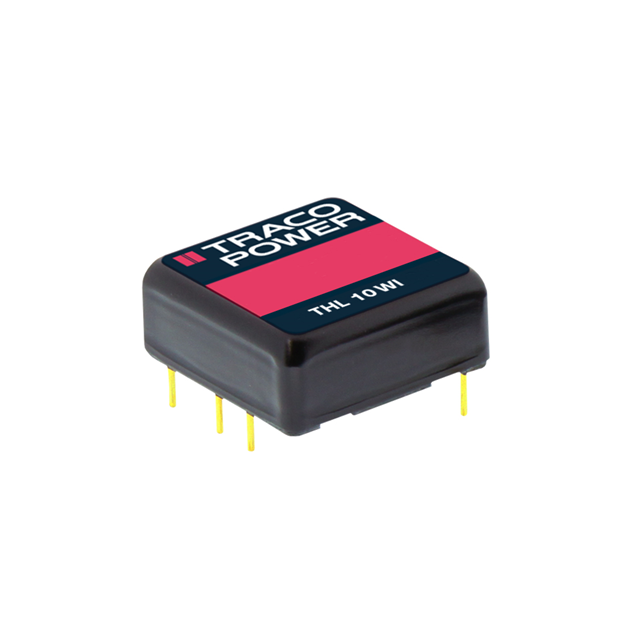

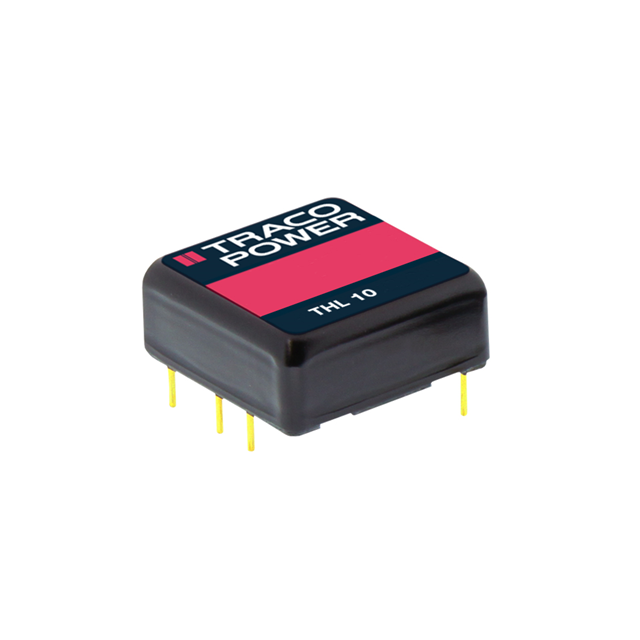

THL 10 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 24V 9.8W
| Part | Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Mounting Type | Features | Voltage - Output 1 | Efficiency | Voltage - Isolation | Current - Output (Max) [Max] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Isolated Module | 75 °C | -40 °C | 1 | ITE (Commercial) | 75 V | 6-DIP Module 5 Leads | 18 V | Through Hole | Remote On/Off SCP | 24 V | 86 % | 1.5 kV | 410 mA | 9.8 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
 Traco Power | Isolated Module | 80 ¯C | -40 °C | 1 | ITE (Commercial) | 75 V | 5-DIP Module 4 Leads | 36 V | Through Hole | SCP | 3.3 V | 83 % | 1.5 kV | 2.5 A | 8.3 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
 Traco Power | Isolated Module | 80 ¯C | -40 °C | 1 | ITE (Commercial) | 18 V | 5-DIP Module 4 Leads | 9 V | Through Hole | SCP | 5.1 V | 85 % | 1.5 kV | 2 A | 10 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
 Traco Power | Isolated Module | 80 ¯C | -40 °C | 1 | ITE (Commercial) | 36 V | 5-DIP Module 4 Leads | 18 V | Through Hole | SCP | 3.3 V | 83 % | 1.5 kV | 2.5 A | 8.3 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
Traco Power | Isolated Module | 80 ¯C | -40 °C | 1 | ITE (Commercial) | 18 V | 5-DIP Module 4 Leads | 9 V | Through Hole | SCP | 15 V | 88 % | 1.5 kV | 670 mA | 10 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
Traco Power | Isolated Module | 75 °C | -40 °C | 1 | ITE (Commercial) | 75 V | 6-DIP Module 5 Leads | 18 V | Through Hole | Remote On/Off SCP | 12 V | 86 % | 1.5 kV | 830 mA | 10 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | ||||
Traco Power | Isolated Module | 75 °C | -40 °C | 2 | ITE (Commercial) | 75 V | 6-DIP Module | 18 V | Through Hole | Remote On/Off SCP | 15 V | 87 % | 1.5 kV | 9.9 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 330 mA | 330 mA | -15 V | ||
Traco Power | Isolated Module | 80 ¯C | -40 °C | 2 | ITE (Commercial) | 36 V | 5-DIP Module | 18 V | Through Hole | SCP | 12 V | 88 % | 1.5 kV | 416 mA | 10 W | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | -12 V | 416 mA |
