FF6MR12 Series

Manufacturer: INFINEON

Catalog

TRANS MOSFET N-CH SIC 1.2KV 250A 7-PIN TRAY

Part	Rds On (Max) @ Id, Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Configuration	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs
INFINEON FF6MR12KM1PHOSA1	5.81 mOhm	Chassis Mount	14700 pF	Silicon Carbide (SiC)	2 N-Channel	Module	-40 °C	150 °C	5.15 V	AG-62MM	250 A	1.2 kV	1200 V

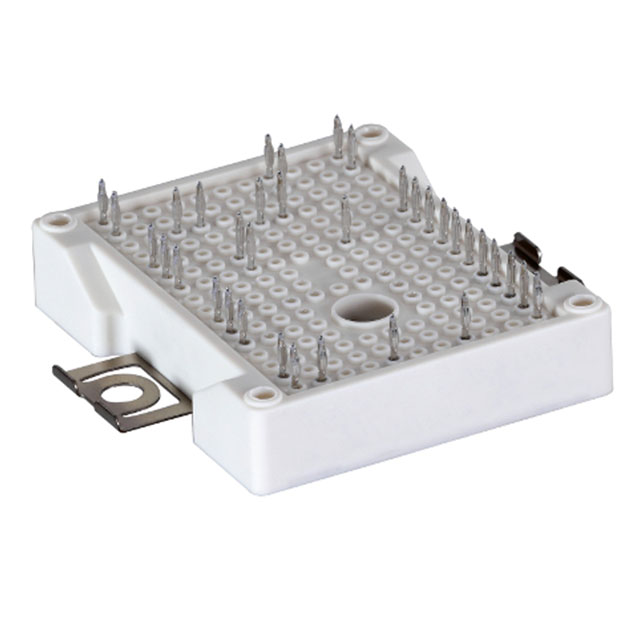

INFINEON FF6MR12W2M1PB11BPSA1		Chassis Mount	14700 pF	Silicon Carbide (SiC)	2 N-Channel (Dual)	Module	-40 °C	150 °C	5.55 V		200 A	1.2 kV	1200 V	5.63 mOhm
INFINEON FF6MR12KM1BOSA1	5.81 mOhm	Chassis Mount	14700 pF	Silicon Carbide (SiC)	2 N-Channel	Module	-40 °C	150 °C	5.15 V	AG-62MM	250 A	1.2 kV	1200 V
INFINEON FF6MR12W2M1B11BOMA1		Chassis Mount	14700 pF	Silicon Carbide (SiC)	2 N-Channel (Dual)	Module	-40 °C	150 °C	5.55 V	AG-EASY2BM-2	200 A	1.2 kV	1200 V	5.63 mOhm
INFINEON FF6MR12W2M1B70BPSA1		Chassis Mount	14700 pF	Silicon Carbide (SiC)	2 N-Channel	Module	-40 °C	150 °C	5.55 V	AG-EASY2B	200 A	1.2 kV	1200 V	5.63 mOhm
INFINEON FF6MR12W2M1HB11BPSA1	5.4 mOhm	Chassis Mount		Silicon Carbide (SiC)	2 N-Channel	Module	-40 °C	175 °C	5.15 V	Module	145 A	1.2 kV	1200 V		446 nC
