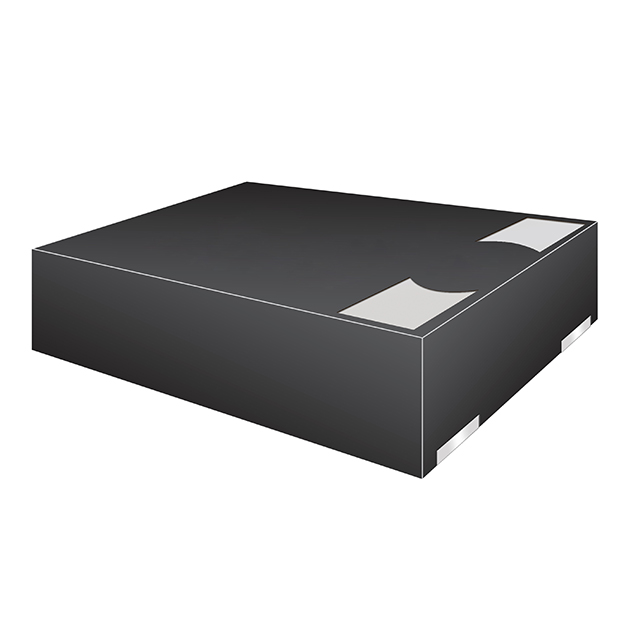

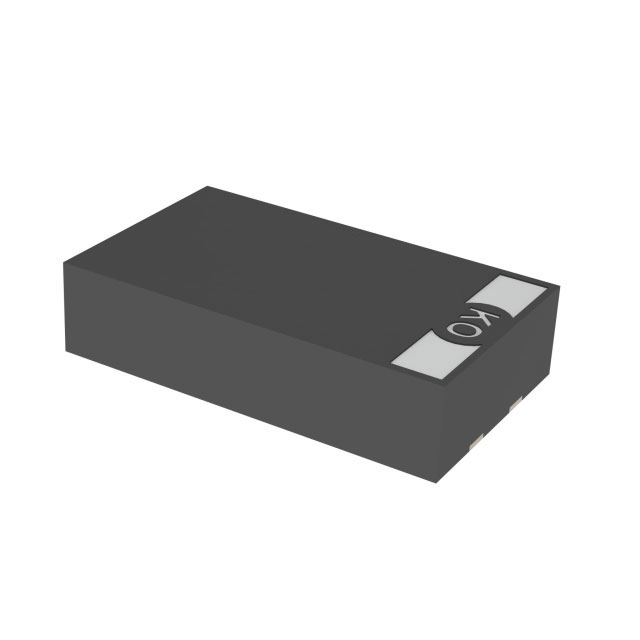

T528Z Series
Manufacturer: KEMET
Beta
⌘K
CAP TANT POLY 150UF 6.3V 2917
| Part | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Tolerance | Mounting Type | Voltage - Rated | Features | Type | ESR (Equivalent Series Resistance) | Manufacturer Size Code | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 150 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 6.3 VDC | General Purpose | Molded | 9 mOhm | Z | |
KEMET | 220 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 6.3 VDC | General Purpose | Molded | 9 mOhm | Z | |
KEMET | 330 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 2.5 V | General Purpose | Molded | 6 mOhm | Z | 2000 Hrs |
 KEMET | 330 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 4 V | General Purpose | Molded | 9 mOhm | Z | |
KEMET | 330 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 2.5 V | General Purpose | Molded | 8 mOhm | Z | |
 KEMET | 470 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 2.5 V | General Purpose | Molded | 6 mOhm | Z | 2000 Hrs |
KEMET | 150 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 6.3 VDC | General Purpose | Molded | 7 mOhm | Z | 2000 Hrs |
KEMET | 220 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 4 V | General Purpose | Molded | 9 mOhm | Z | |
KEMET | 150 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 6.3 VDC | General Purpose | Molded | 12 mOhm | Z | |
KEMET | 470 µF | 0.067 in | 1.7 mm | -55 C | 105 ░C | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | 20 % | Surface Mount | 2.5 V | General Purpose | Molded | 8 mOhm | Z |
